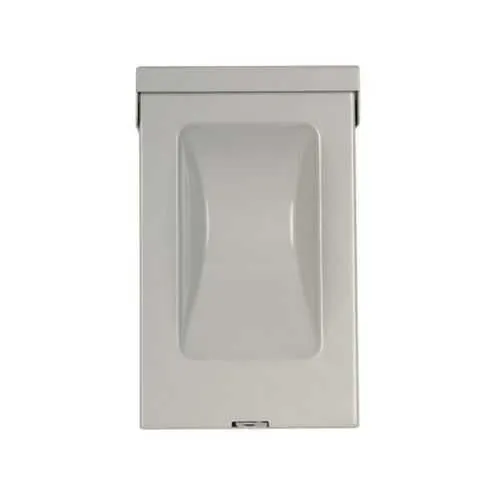

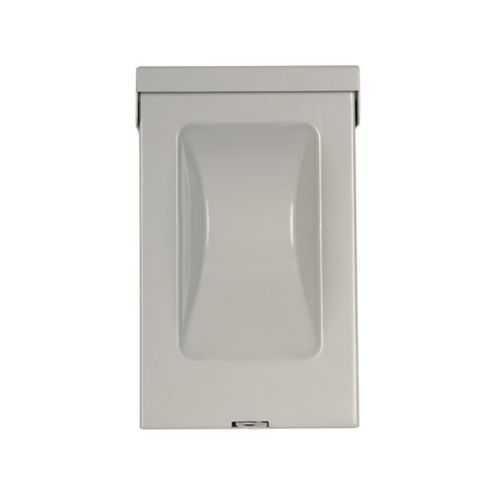

Eaton DPB222R Air Conditioning Disconnect - UL Listed
Part Number: DPB222R
Quick Summary
DPB222R air conditioning disconnect by Eaton provides a rugged, code-compliant switch for HVAC equipment. It addresses the common challenge of outdoor service disconnects that must fit standard enclosures and wiring while meeting reliability expectations. This unit carries UL Listed and CSA Certified marks, with a 10 kAIC interrupt rating and a NEMA 3R galvanized steel enclosure to withstand harsh environments. The design emphasizes straightforward wiring with #14-3 Cu/Al conductors and a compact footprint that fits tight panel spaces. For engineers and procurement teams, it reduces installation time and maintains compliance across HVAC installations by combining robust protection with practical field serviceability.
Product Information
Extended Description
DPB222R Eaton: Eaton Air Conditioning Disconnect, Molded case switch, 60 A, 240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPB222R
UPC
782114205686
Product Length/Depth
5.3 in
Product Height
8.6 in
Product Width
3.74 in
Product Weight
3.11 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
For replacement molded case switch, order part number BR260NA.
Type
Air conditioning disconnect
Amperage Rating
60A
Horsepower
10 hp at 240 V
Voltage rating
240V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPB222R
Feature → Business Impact → Application: 60A amperage rating at 240V with a 10 kAIC interrupt rating provides fast fault clearance, protecting equipment and reducing outage time in commercial HVAC systems. This translates to improved reliability for rooftop units and packaged systems, while meeting critical fault-clearing standards in HVAC service disconnects. Application: outdoor HVAC disconnects in commercial buildings where rapid fault interruption is essential and budget-friendly protection is required. Feature → Business Impact → Application: NEMA 3R galvanized steel enclosure delivers dependable outdoor integrity and corrosion resistance, minimizing maintenance and repainting costs. Application: rooftop units, exterior panels, and weather-exposed equipment where enclosure protection matters. Feature → Business Impact → Application: Wire size compatibility (#14-3 AWG Cu/Al) simplifies wiring, reduces install time, and supports compliant control circuits. Application: field connections to contactors and control relays in air handler and condenser configurations. Feature → Business Impact → Application: UL Listed and CSA Certified for safety compliance reduces approval cycles and enhances customer confidence. Application: regulated installations in commercial and light industrial HVAC. Feature → Business Impact → Application: 5.3 in depth, 8.6 in height, 3.74 in width with a 3.11 lb weight enables a compact footprint for space-constrained panels. Application: panel layouts, retrofit projects, and retrofits where space is at a premium. Feature → Business Impact → Application: Replacement compatibility with BR260NA simplifies maintenance planning and stock optimization. Application: spares strategy for molded case switch replacement in existing Eaton disconnect installations.
