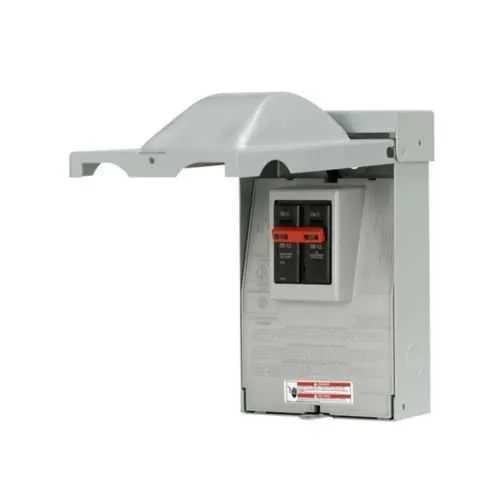

Eaton DPB222RP Air Conditioning Disconnect - UL Listed 10 kAIC
Part Number: DPB222RP
Quick Summary
Eaton DPB222RP air conditioning disconnect is a safe, code-compliant way to isolate HVAC equipment during service or maintenance. This molded-case switch addresses the common challenge of accidental energization and inconsistent shutdowns that can lead to downtime or equipment damage. The device carries UL Listed and CSA Certified marks, with a 10 kAIC interrupt rating and a rugged NEMA 3R galvanized steel enclosure suitable for outdoor and harsh indoor environments. By delivering 60A at 240V with #14-3 Cu/Al wiring, it supports typical commercial HVAC configurations while simplifying procurement and installation. For engineers and technicians, it translates into faster service turnaround and stronger regulatory compliance without compromising system performance.
Product Information
Extended Description
DPB222RP Eaton: Eaton Air Conditioning Disconnect, Molded case switch, Retail package, 60A, 240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPB222RP
UPC
782114208250
Product Length/Depth
5.3 in
Product Height
8.6 in
Product Width
3.7 in
Product Weight
3.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
Packaged for retail sale
Special features
Retail package
Type
Air conditioning disconnect
Amperage Rating
60A
Horsepower
10 hp at 240 V
Voltage rating
240V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPB222RP
Feature: Molded-case switch provides reliable electrical isolation for HVAC circuits. Business Impact: Minimizes risk of arc flash and accidental energization, supporting safer maintenance windows and compliant operations. Application: Ideal for rooftop units, package air conditioners, and commercial HVAC disconnects, allowing service personnel to de-energize the system without pulling main power. Feature: 60A current rating at 240V with a 10 kAIC interrupt rating. Business Impact: Rapid fault clearing protects wiring and components, reducing potential damage and downtime. Application: Suitable for mid-sized HVAC equipment and space-constrained panels where compact, reliable protection is essential. Feature: NEMA 3R galvanized steel enclosure with ANSI 61 gray finish. Business Impact: Weatherproof and corrosion-resistant housing enables dependable outdoor performance across climates. Application: Rooftop and mechanical rooms where exposure to moisture or dust is likely. Feature: Wire size capability #14-3 Cu/Al and terminals rated for 60°C or 75°C. Business Impact: Simplifies field wiring and reduces installation time with broad conductor compatibility. Application: Standard HVAC wiring runs and retrofit projects needing straightforward termination. Feature: Retail packaging and catalog notes. Business Impact: Streamlines procurement, inventory planning, and job-site readiness for installers and distributors. Application: Retail channels and distribution networks benefit from clear packaging and accessible stock.
Get a Quick Quote for a Eaton DPB222RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPB222RP?
Enquire Now
FAQs
DPB222RP installs as a standard molded-case disconnect in HVAC service panels. Ensure proper clearance and a suitable mounting location, align with NEC requirements, and wire using #14-3 Cu/Al conductors rated for 60°C or 75°C. Verify terminations and torque specs per the Eaton specification sheet to ensure clean, code-compliant connections.
DPB222RP is rated for 60A at 240V with a 10 kAIC interrupt rating. The enclosure is a NEMA 3R galvanized steel housing. Physical dimensions are 5.3 in (depth) by 3.7 in (width) by 8.6 in (height), with an operating weight of 3.1 lb. Wiring uses #14-3 Cu/Al conductors for reliable field connections.
Yes. The NEMA 3R galvanized steel enclosure provides weather resistance, and the ANSI 61 gray finish offers durable visibility. UL Listed and CSA Certified, the disconnect is designed for outdoor environments and industrial settings where exposure to moisture and dust is common.
DPB222RP carries UL Listed and CSA Certified markings, confirming compliance with safety and performance standards. These certifications support code compliance during audits, reduce commissioning risk, and help ensure downstream compatibility with other certified electrical equipment in commercial and light industrial installations.
Using the DPB222RP reduces maintenance downtime by enabling quick, safe isolation of HVAC equipment. Its rugged enclosure, reliable 60A/240V rating, and certified reliability translate to fewer service delays, easier retrofits, and better audit readiness, delivering measurable ROI through improved uptime and workforce safety.
