Eaton DPF221R Air Conditioning Disconnect - UL Listed
Part Number: DPF221R
Quick Summary
Eaton air conditioning disconnect provides safe isolation for HVAC equipment in commercial and light industrial systems. Maintenance access is often hindered by crowded panels, increasing downtime and risk without a reliable isolation point. UL Listed and CSA Certified enclosures enhance safety compliance across industrial and building codes. Designed for 120/240 V HVAC circuits, it supports efficient replacement pullouts and durable service life, while ensuring quick installation with a NEMA 3R enclosure. The 30 A fused pullout aligns with standard HVAC wiring practices, enabling straightforward installation, reduced downtime, and predictable service intervals. The solution integrates seamlessly with typical maintenance workflows, lowering spare-part inventory and training burden for facilities teams.
Product Information
Extended Description

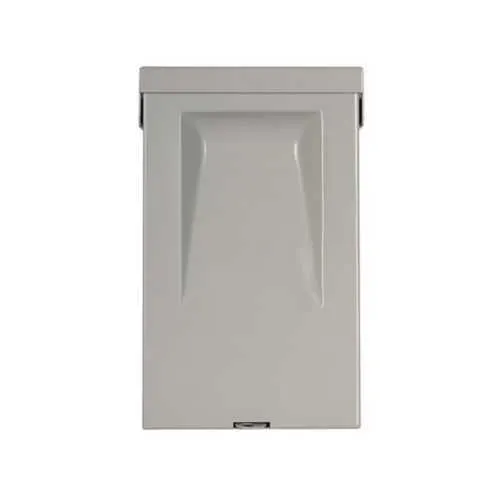

DPF221R Eaton: Eaton air conditioning disconnect, Fused pullout, 30A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 2 hp at 120V, 3 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPF221R
UPC
782113926865
Product Length/Depth
5.4 in
Product Height
8.7 in
Product Width
3.15 in
Product Weight
2.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
For replacement pullout head, order part number 96-3258-4.
Type
Fused pullout
Amperage Rating
30A
Horsepower
2 hp at 120 V, 3 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPF221R
Feature: Fused pullout design delivers reliable isolation and protection for HVAC circuits. Business Impact: Reduces fault propagation and protects downstream equipment, lowering repair costs and downtime. Application: 120/240 V HVAC units in light commercial settings. Feature: 30 A amperage rating with 10 kAIC interrupt rating. Business Impact: Robust fault current handling improves safety margins and code compliance, supporting longer service life for compressors and contactors. Application: High inrush HVAC loads and peak compressor start sequences.Feature: NEMA 3R galvanized steel enclosure with ANSI 61 gray finish. Business Impact: Outdoor-ready protection against weather and corrosion, reducing enclosure maintenance and extending installation life. Application: Exterior equipment disconnects on rooftop units or outdoor service alcoves.Feature: Wire size compatibility (#14-3 Cu/Al) and dual voltage (120/240 V). Business Impact: Simplifies wiring, reduces labor time, and minimizes miswiring risks during installation and upgrades. Application: Standard HVAC feeder wiring in commercial spaces.Feature: Replacement pullout head option (96-3258-4) and clear catalog notes. Business Impact: Minimizes downtime by allowing rapid head replacements without full enclosure removal. Application: Field service scenarios where quick maintenance is critical.Feature: Certifications and warranty (UL Listed, CSA Certified; one-year warranty or 18 months from shipment). Business Impact: Strengthens supplier confidence, ensures regulatory alignment, and mitigates lifecycle cost concerns. Application: Procurement and facility management programs seeking compliant, long-term protection for HVAC circuits.
