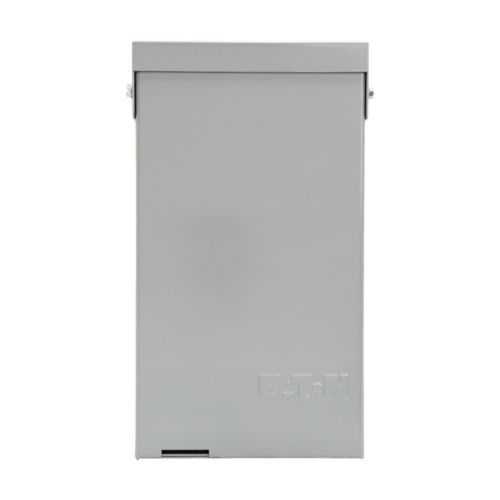

Eaton DPF221RGF20WTST AC Disconnect - UL Listed
Part Number: DPF221RGF20WTST
Quick Summary
Eaton DPF221RGF20WTST AC disconnect provides safe isolation for HVAC equipment in commercial and residential installations. Techs often contend with disconnects that fail under weather exposure, complicate wiring, or delay service due to nonstandard mounting. This unit is CSA Certified and UL Listed, with a NEMA 3R galvanized steel enclosure that withstands outdoor environments and harsh conditions. Its 30A rating at 120/240V and weather-resistant features support reliable service across facilities, while the self-test receptacle and compatibility with standard wiring improve installation efficiency and compliance. For integrators and service teams, this means reduced downtime, easier procurement, and a clear path to code-conforming protection for HVAC systems.
Product Information
Extended Description
DPF221RGF20WTST Eaton: Eaton air conditioning disconnect, 30A FUSED, Metallic, 20A WRTR GF Self-Test
Product Name
Eaton air conditioning disconnect
Catalog Number
DPF221RGF20WTST
UPC
786685982328
Product Length/Depth
7.5 in
Product Height
13 in
Product Width
4.75 in
Product Weight
8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Type
Fused pullout
Amperage Rating
30A
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Receptacle
20 A weather/tamper-resistant ground fault self-test receptacle
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPF221RGF20WTST
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The fused pullout design provides safe isolation and straightforward replacement, reducing service time when HVAC circuits need maintenance or upgrades, especially in retrofit projects. Application: service rooms and outdoor equipment where rapid disconnection is required without compromising workflow. Feature → Business Impact → Application: A 30A, 120/240V rating aligns with common HVAC branch circuits, enabling seamless integration with existing circuit protection and minimizing rewiring costs. Application: new installations and upgrades in light commercial settings. Feature → Business Impact → Application: A 20A weather/tamper-resistant self-test receptacle enhances fault detection and protects equipment from ground faults, lowering call-backs and warranty claims. Application: control panels, outdoor units, and near compressor assemblies. Feature → Business Impact → Application: NEMA 3R galvanized enclosure delivers weatherproof, corrosion-resistant housing that withstands outdoor exposure, reducing enclosure maintenance and extending service life. Application: exterior installations in varied climates. Feature → Business Impact → Application: Copper/Aluminum wire compatibility (#14-3 AWG Cu/Al) supports flexible wiring options and cost-effective procurement. Application: retrofits and new builds where diverse conductor types are present. Feature → Business Impact → Application: Clear certifications CSA Certified and UL Listed simplify procurement, audits, and regulatory compliance. Application: compliance-heavy projects and distributor-led procurement. Warranty and support: The Eaton 25-000 policy offers one year from installation or 18 months from shipment, reducing risk and providing assurance for long-term operation. Application: project handover, maintenance planning, and service contracts.
Get a Quick Quote for a Eaton DPF221RGF20WTST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPF221RGF20WTST?
Enquire Now
FAQs
Yes. This unit is a 30A fused pullout disconnect designed for 120/240V circuits and works with #14-3 AWG Cu/Al conductors. It supports a 20A weather/tamper-resistant self-test receptacle and mounts in a NEMA 3R galvanized steel enclosure, making it suitable for both residential and light commercial HVAC installations while meeting code requirements.
The disconnect features a 10 kAIC interrupt rating and a fused pullout design for reliable circuit isolation. It incorporates a 20A weather/tamper-resistant GFCI/self-test receptacle for rapid fault detection. Rated at 120/240V, it provides CSA Certified and UL Listed compliance for essential electrical protection.
Yes. The enclosure is NEMA 3R and constructed from galvanized steel, delivering weather resistance suitable for exterior HVAC equipment. Its ANSI 61 gray finish and sturdy mounting mean dependable performance in exposed locations, while maintaining accessibility for maintenance and service.
The device is CSA Certified and UL Listed, with available Eaton datasheets and warranty documentation. Procurement and audits are streamlined by referencing the Eaton Specification Sheet and the Residential and Light Commercial catalog, ensuring traceability and adherence to applicable electrical standards.
Warranty follows Eaton policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This reduces downtime risk and supports long-term serviceability, while the durable construction and self-test receptacle help minimize maintenance costs and improve overall project ROI.
