Eaton DPF222RGF20WTST Air-Conditioning Disconnect - UL Listed
Part Number: DPF222RGF20WTST
Quick Summary
Eaton air conditioning disconnect provides a reliable solution for safely isolating equipment in commercial and industrial HVAC systems. Engineers often struggle with wiring mismatches, nuisance trips, and downtime when disconnects don’t meet load or environmental demands. This model carries CSA Certified and UL Listed marks, with a rugged NEMA 3R galvanized enclosure suitable for outdoor installations. By combining a 60 A fused pullout with a weather-resistant receptacle, it delivers compliant, dependable performance that minimizes field wiring challenges and maintenance costs while maximizing uptime for HVAC equipment and related systems.
Product Information
Extended Description

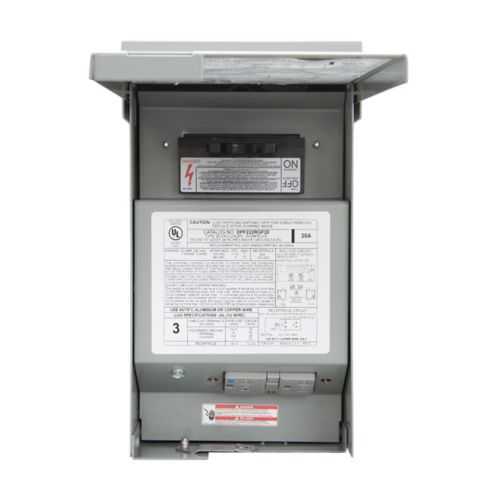

DPF222RGF20WTST Eaton: Eaton air conditioning disconnect, 60A FUSED, Metallic, 20A WRTR GF Self-Test
Product Name
Eaton air conditioning disconnect
Catalog Number
DPF222RGF20WTST
UPC
786685982359
Product Length/Depth
7.5 in
Product Height
13 in
Product Width
4.75 in
Product Weight
8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Type
Fused pullout
Amperage Rating
60A
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Receptacle
20 A weather/tamper-resistant ground fault self-test receptacle
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPF222RGF20WTST
Feature: 60A fused pullout and 120/240V rating provide a clear, safe isolation point for HVAC equipment. Business Impact: Reduces fault current exposure and downtime, supporting safer start-up sequencing and faster service restoration. Application: Ideal for rooftop units and packaged HVAC systems that require dependable disconnection in both indoor and outdoor environments.Feature: NEMA 3R galvanized steel enclosure delivers durable outdoor protection. Business Impact: Withstands weather, corrosion, and rough installation conditions, lowering replacement frequency and maintenance spend. Application: Outdoor enclosures in carports, rooftops, and mechanical rooms where weather resistance is essential.Feature: 20A weather/tamper-resistant ground fault self-test receptacle enhances safety compliance. Business Impact: Improves fault protection and reduces nuisance trips, streamlining code-compliant installations and inspections. Application: Receptacle integration for outdoor equipment and service outlets where GFCI protection is required.Feature: 10 kAIC interrupt rating ensures robustness against short-circuit events. Business Impact: Protects downstream equipment and wiring from high-energy faults, reducing repair costs and downtime. Application: Industrial HVAC installations with elevated short-circuit risks and crowded electrical cabinets.Feature: Compact dimensions and weight (7.5 in depth, 13 in height, 4.75 in width, 8 lb) enable easier retrofit and cleaner panel layouts. Business Impact: Simplifies installation in constrained spaces, lowers labor time, and supports faster project completion. Application: Retrofit projects or new builds where space efficiency matters and wiring routes are tight.Feature: Includes warranty and certified construction (CSA Certified, UL Listed). Business Impact: Provides risk reduction for procurement and reliability assurances for maintenance planning. Application: Projects requiring proven regulatory compliance and documented vendor support.
