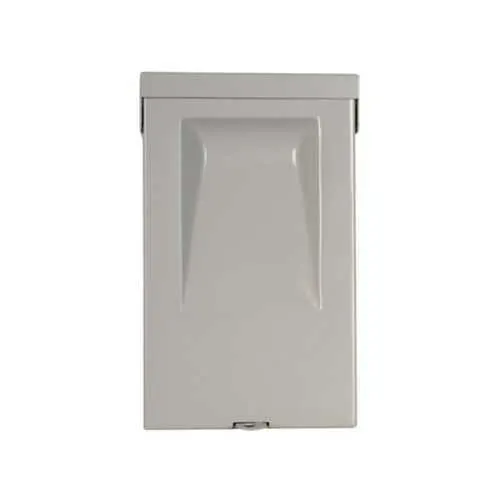

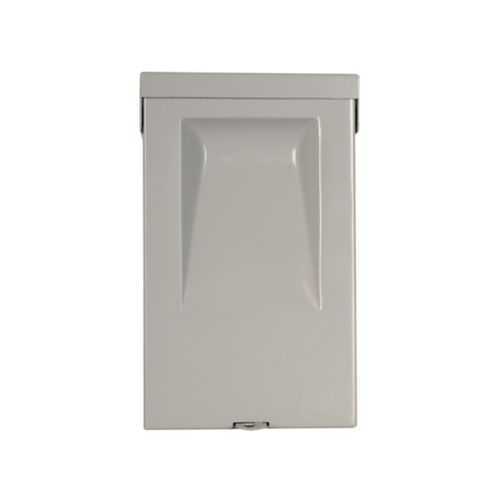

Eaton DPF222RP Air Conditioning Disconnect - UL Listed
Part Number: DPF222RP
Quick Summary
DPF222RP air conditioning disconnect provides a safe, code-compliant shutoff for HVAC units. Designed for reliability, it delivers consistent performance across 120/240V circuits, making retrofits and new installations straightforward. Installers often face retrofit constraints, space limitations, and the challenge of meeting 10 kAIC fault ratings in busy mechanical rooms. This unit carries CSA Certified and UL Listed marks and uses a NEMA 3R galvanized enclosure to resist moisture, corrosion, and weather exposure in demanding environments. Retail packaging simplifies procurement, reduces lead times, and supports service-provider workflows, while its compact footprint helps OEMs integrate the disconnect into slim equipment bays and service carts.
Product Information
Extended Description
DPF222RP Eaton: Eaton air conditioning disconnect, Fused pullout, Retail package, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPF222RP
UPC
782114103227
Product Length/Depth
5.4 in
Product Height
3 in
Product Width
3.15 in
Product Weight
2.8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
Packaged for retail sale
Special features
Retail package
Type
Fused pullout
Amperage Rating
60A
Horsepower
3 hp at 120 V, 10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPF222RP
60A amperage rating, 120/240V supply, 10 kAIC interrupt rating, and a fused pullout design deliver a dependable shutoff for HVAC circuits, reducing risk during maintenance and startup. Business impact: enhanced safety and faster service because noisy fault clears without extended downtime; application: residential and light commercial HVAC equipment. The NEMA 3R galvanized steel enclosure with ANSI 61 gray finish provides weather resistance and long-term durability, improving lifecycle cost and compliance in outdoor installations. Business impact: reduced corrosion-related failures and fewer field repairs; application: rooftop units, condensers, and outdoor air handling equipment. Wire size of #14-3 AWG Cu/Al, with 3 hp at 120 V and 10 hp at 240 V, supports standard HVAC motor loads, simplifying part selection and installation. Business impact: lower wiring mistakes, faster wiring, and consistent motor protection; application: common HVAC motors and contactor systems. Retail packaging and a compact form factor streamline procurement and integration, saving inventory space and boosting installation speed. Business impact: improved project timelines and easier OEM integration; application: distributor stocking and contractor job sites. Certifications CSA Certified and UL Listed reinforce safety and regulatory compliance, helping avoid non-conformance penalties and warranty issues. Business impact: peace of mind for purchase decisions, compliance with electrical safety programs; application: regulated facilities and service fleets.
Get a Quick Quote for a Eaton DPF222RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPF222RP?
Enquire Now
FAQs
DPF222RP accepts #14-3 AWG Cu/Al conductors and is rated for 60A at 120/240V with a 10 kAIC interrupt rating, making it compatible with common residential and light commercial HVAC feeders. For installations, ensure proper conductor sizing, secure terminations, and follow NEC requirements for service disconnects.
To meet code, install the DPF222RP in a NEMA 3R galvanized enclosure suitable for the environment, use appropriately sized conductors (#14-3 Cu/Al), and verify voltage and amperage align with system requirements. The unit is CSA Certified and UL Listed, supporting compliance with electrical safety programs and inspection criteria.
Yes. With dimensions of 5.4 in (length) x 3 in (height) x 3.15 in (width) and a weight of 2.8 lb, the DPF222RP fits compact retrofit applications and OEM integrations. Its compact footprint reduces cabinet intrusion and streamlines installation in limited spaces within mechanical rooms and outdoor units.
Absolutely. The DPF222RP carries CSA Certified and UL Listed marks, plus a 10 kAIC interrupt rating and NEMA 3R galvanized enclosure, delivering robust safety, reliability, and environmental protection for outdoor and damp locations in accordance with industry standards.
Eaton provides a standard warranty policy (25-000) offering one year from installation or eighteen months from shipment, whichever occurs first. This coverage, along with readily available replacement parts and documentation, supports ongoing service and total cost of ownership considerations.
