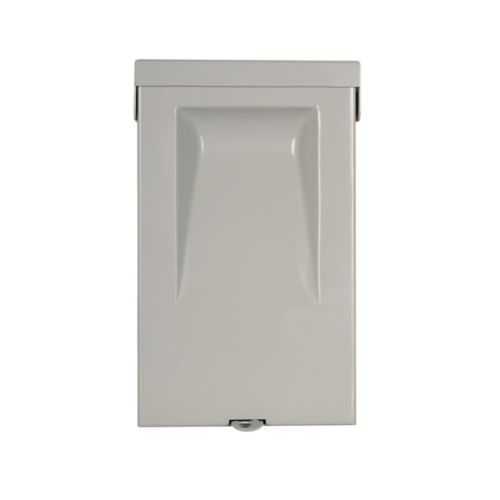

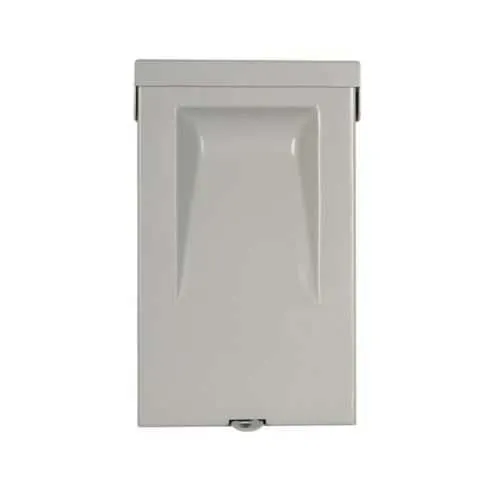

Eaton DPU222R Air Conditioning Disconnect - UL Listed
Part Number: DPU222R
Quick Summary
The Eaton DPU222R air conditioning disconnect provides safe, code-compliant isolation for HVAC equipment in commercial and light industrial applications. Facilities often struggle with nuisance trips and hard-to-access disconnects that slow maintenance and compromise safety. This unit carries CSA Certified and UL Listed safety marks and uses a NEMA 3R galvanized steel enclosure to withstand outdoor or damp locations. Designed for low-voltage power distribution and quick serviceability, it helps contractors meet electrical codes while reducing downtime and labor costs.
Product Information
Extended Description
DPU222R Eaton: Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPU222R
UPC
782113926858
Product Length/Depth
9 in
Product Height
2 in
Product Width
5.5 in
Product Weight
3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
For replacement pullout head, order part number 96-3258-4.
Type
Non-fused pullout
Amperage Rating
60A
Horsepower
10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
eaton-dimensional-drawing-dpu222r-en-us
Eaton Specification Sheet - DPU222R
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Non-fused pullout provides swift, safe isolation of HVAC circuits. Business Impact: Reduces risk of electrical shock during servicing and minimizes downtime during maintenance. Application: Ideal for service disconnects on HVAC equipment in commercial and industrial facilities. Feature: 60 A amperage rating with 120/240 V operation. Business Impact: Handles typical air-conditioning loads up to 10 hp at 240 V, enabling compact, code-compliant installs. Application: Residential and light commercial HVAC panels with limited space. Feature: 10 kAIC interrupt rating. Business Impact: Enhances short-circuit protection for equipment and wiring, lowering fault-related damage and downtime. Application: Ready for systems requiring robust interrupt performance in mixed-use buildings. Feature: NEMA 3R galvanized steel enclosure. Business Impact: Provides outdoor/damp-location protection, improving reliability in weather-exposed installations. Application: Exterior disconnects for rooftop units and outdoor equipment. Feature: Conductor compatibility #14-3 AWG Cu/Al. Business Impact: Simplifies wiring, reduces field rework, and supports compliant conductor sizing. Application: Field installs with standard HVAC wiring practices. Feature: Compact dimensions 9 in x 5.5 in x 2 in and 3 lb weight. Business Impact: Easy surface or enclosure mounting with minimal footprint. Application: Space-constrained panels and retrofits. Catalog Notes: Replacement pullout head available as part number 96-3258-4 for streamlined maintenance.
Get a Quick Quote for a Eaton DPU222R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPU222R?
Enquire Now
FAQs
To install the DPU222R, verify the panel rating supports a 60 A non-fused pullout and ensure clearance for a 9 inch depth. Mount the housing, connect conductors with #14-3 Cu/Al per local codes, attach the pullout head, and re-check alignment. Tighten terminations to manufacturer torque specs and test for proper isolation before commissioning.
Yes. The device is rated for 60 A and supports up to 10 hp at 240 V, making it appropriate for HVAC motors in that range. It uses a non-fused pullout and a 10 kAIC interrupt rating, enabling safe isolation during startup and fault conditions while keeping wiring compact and compliant.
The DPU222R is CSA Certified and UL Listed, confirming adherence to recognized safety standards for electrical equipment. These certifications help ensure compliance with national and regional electrical codes, support reliability in critical environments, and facilitate safer field installations in both indoor and outdoor settings.
It comes in a NEMA 3R galvanized steel enclosure, designed for outdoor or damp locations. This enclosure type offers weather and corrosion resistance, protecting wiring and components from moisture, dust, and incidental impacts. It is well-suited for rooftop HVAC disconnects and exterior service points in commercial facilities.
The DPU222R reduces downtime with quick-access, non-fused isolation and a durable NEMA 3R enclosure that withstands harsh environments. Its CSA UL certifications simplify compliance, and replacement pullout heads (96-3258-4) streamline maintenance. Overall, you gain faster serviceability, fewer field repairs, and predictable maintenance costs over the product life cycle.
