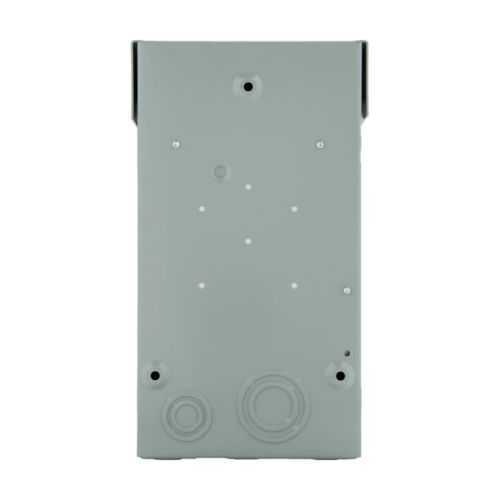

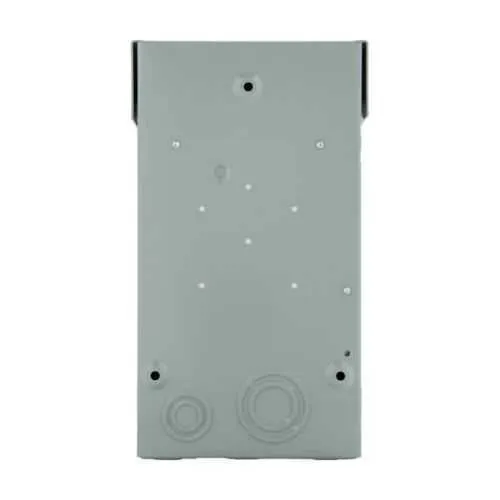

Eaton DPU222RGF15WTST Air Conditioning Disconnect - NEMA 3R
Part Number: DPU222RGF15WTST
Quick Summary
Eaton air conditioning disconnect is designed to safely isolate outdoor HVAC equipment with a 60A non-fused pullout. This solution addresses the common challenge of selecting a rugged, weather-ready disconnect that won’t complicate installation or future maintenance. The unit features a NEMA 3R galvanized enclosure for outdoor reliability, a weather/tamper-resistant 15 A GFCI self-test receptacle, and a 120/240 V rating to support typical commercial and residential cooling systems. Certifications vary by market, but the design aligns with outdoor safety and fault protection standards through its robust enclosure and 10 kAIC interrupt rating. For engineers and procurement professionals, this combination translates to faster commissioning, improved safety compliance, and lower lifecycle costs for HVAC electrical protection.
Product Information
Extended Description
DPU222RGF15WTST Eaton: Eaton air conditioning disconnect, 60A Non-Fused, Mettalic, WRTR, 15A ground fault self-test
Product Name
Eaton air conditioning disconnect
Catalog Number
DPU222RGF15WTST
UPC
786685982243
Product Length/Depth
7.5 in
Product Height
13 in
Product Width
4.75 in
Product Weight
8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
Contact Manufacturer
Type
Non-fused pullout
Amperage Rating
60A
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Receptacle
15 A weather/tamper-resistant ground fault self-test receptacle
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPU222RGF15WTST
Feature: 60A non-fused pullout in a galvanized steel enclosure → Business Impact: Safe isolation for outdoor HVAC reduces downtime and accidental energization during service → Application: Rooftop units, outdoor condensers, and walk-in cooling systems.Feature: 120/240 V capability with #14-3 Cu/Al wiring → Business Impact: Flexible integration with existing feeders and panels, lowering wiring complexity and install time → Application: Retrofit projects and new installations across commercial facilities.Feature: 15 A weather/tamper-resistant ground fault self-test receptacle → Business Impact: Enhanced personnel safety and code compliance, with automatic self-testing to prevent undetected ground faults → Application: Outdoor equipment outlets and remote control sites.Feature: 10 kAIC interrupt rating → Business Impact: Higher fault-current handling improves reliability and protects downstream equipment → Application: Industrial HVAC circuits with potential higher fault levels.Feature: NEMA 3R enclosure, ANSI 61 gray galvanised steel → Business Impact: Superior outdoor protection and corrosion resistance reduce maintenance cycles → Application: Exterior installations in variable climates.Feature: Comprehensive warranty and support (Eaton policy 25-000) → Business Impact: Predictable asset protection and faster issue resolution → Application: Long-term facility maintenance planning.
Get a Quick Quote for a Eaton DPU222RGF15WTST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPU222RGF15WTST?
Enquire Now
FAQs
Installers should plan for a 60A non-fused pullout in a 120/240 V circuit using #14-3 copper or aluminum conductors. Mount in a readily accessible outdoor location compatible with a NEMA 3R enclosure, and follow NEC wiring methods. Ensure the 15 A GFCI self-test receptacle is accessible for periodic testing and that wiring routing minimizes exposure to moisture and physical damage.
Key specs include a 60A amperage rating, 120/240 V voltage rating, and a 10 kAIC interrupt rating. It uses #14-3 Cu/Al conductors and features a 15 A weather/tamper-resistant ground fault self-test receptacle, all housed in a NEMA 3R galvanized enclosure for outdoor use.
Yes. The DPU222RGF15WTST is designed for outdoor service with a NEMA 3R enclosure, galvanized steel construction, and a weather/tamper-resistant GFCI receptacle. It provides reliable isolation for outdoor HVAC equipment while meeting typical safety and environmental protection requirements.
Certifications are listed as Manufacturer-specific for this model; however, the unit includes a NEMA 3R enclosure for outdoor protection and an IEC/UL-aligned component set. For precise certifications in your region, consult Eaton’s datasheet and the local authority having jurisdiction.
The unit reduces maintenance downtime by providing reliable outdoor isolation and a built-in GFCI self-test that enhances safety. Its galvanized enclosure resists corrosion, lowering service frequency. Coupled with Eaton’s warranty, this translates to lower lifecycle costs and improved asset utilization for facilities with outdoor HVAC equipment.
