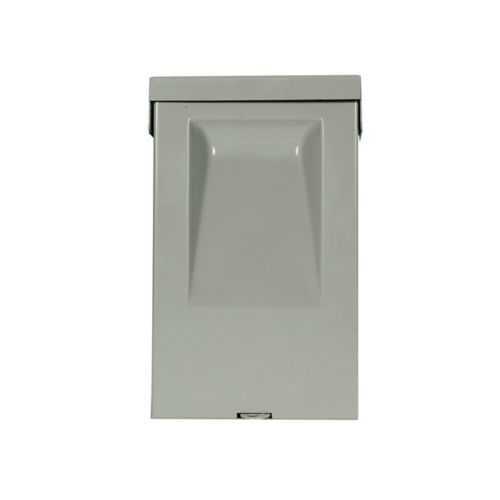

Eaton DPU222RP Air Conditioning Disconnect - UL Listed
Part Number: DPU222RP
Quick Summary
Eaton DPU222RP air conditioning disconnect provides a reliable non-fused pullout solution for HVAC equipment control panels in commercial and light industrial settings. This design helps technicians isolate power quickly and safely during maintenance, reducing downtime and exposure to energised circuits. The unit carries UL Listed and CSA Certified ratings and features a NEMA 3R galvanized steel enclosure suitable for outdoor or damp environments, with an ANSI 61 gray finish that resists corrosion. With a 60A rating at 120/240V and a 10 kAIC interrupt rating, it supports common HVAC loads while maintaining compliance with safety standards. For procurement teams, the combination of compact dimensions, copper/aluminum wire versatility (#14-3), and a robust warranty delivers lower lifecycle costs and easier field installation.
Product Information
Extended Description
DPU222RP Eaton: Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPU222RP
UPC
782114103234
Product Length/Depth
8.9 in
Product Height
3.1 in
Product Width
5.4 in
Product Weight
2.65 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
Packaged for retail sale
Type
Non-fused pullout
Amperage Rating
60A
Horsepower
3 hp at 120 V, 10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-3 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPU222RP
Non-fused pullout design enables quick, safe isolation of HVAC circuits, reducing arc exposure and maintenance risk. This translates into shorter service outages and faster commissioning for commercial buildings and data centers. 60A rating at 120/240V with a 10 kAIC interrupt rating ensures dependable protection for typical rooftop units and fan coil equipment, and the ability to handle 3 hp at 120V and 10 hp at 240V aligns with common HVAC motors, enabling a single disconnect for multiple loads. The NEMA 3R galvanized steel enclosure in ANSI 61 gray offers outdoor durability and corrosion resistance, reducing rust-related maintenance for outdoor installations. Wire size compatibility of #14-3 Cu/Al simplifies field wiring, improving installation speed and traceability. UL Listed and CSA Certified status, backed by Eaton warranty, support compliance and distributor availability, lowering lifecycle cost and risk for contractors.
Get a Quick Quote for a Eaton DPU222RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPU222RP?
Enquire Now
FAQs
When installing the DPU222RP in outdoor HVAC panels, ensure the NEMA 3R galvanized steel enclosure is mounted with proper clearance for service and cooling, verify space for the #14-3 Cu/Al wiring, and plan for a quick pullout disconnect path. The unit’s 60A rating at 120/240V and 10 kAIC interrupt rating should align with the HVAC load and short-circuit requirements, while UL Listed and CSA Certified status supports code compliance during inspection.
The DPU222RP provides a 60A amperage rating at both 120V and 240V, with a 10 kAIC interrupt rating. It supports up to 3 hp at 120V and 10 hp at 240V, and uses #14-3 Cu/Al conductors. These specifications enable reliable protection for typical HVAC motors while complying with common electrical codes in commercial installations.
Yes. The unit comes in a NEMA 3R galvanized steel enclosure with ANSI 61 gray color, designed for outdoor and damp environments. Its weather-resistant construction, combined with UL Listed and CSA Certified ratings, helps maintain safety and reliability for rooftop units and outdoor condensers without requiring frequent enclosure maintenance.
The DPU222RP is UL Listed and CSA Certified, signaling conformity with relevant U.S. and Canadian safety standards. These certifications simplify code compliance during inspections for outdoor HVAC service equipment, while the 10 kAIC interrupt rating provides robust short-circuit protection in typical installation scenarios.
The non-fused pullout design reduces maintenance complexity by providing a straightforward isolation point for servicing HVAC equipment, shortening downtime. Its galvanized steel NEMA 3R enclosure resists corrosion in outdoor environments, lowering replacement and repaint costs. Packaged for retail sale and backed by Eaton’s warranty further support quick procurement and reliable long-term operation.
