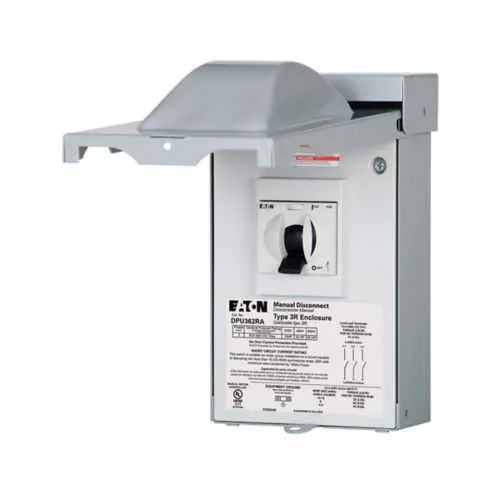

Eaton DPU362RA Air Conditioning Disconnect - 10 kAIC
Part Number: DPU362RA
Quick Summary
Eaton air conditioning disconnect isolates HVAC equipment safely for commercial and industrial installations. Many buyers struggle to find a single disconnect that meets 60A, 240/480V capability, and outdoor durability in one rugged, maintenance-friendly enclosure. This unit is CSA Certified and UL Listed, housed in a NEMA 3R galvanized steel enclosure with ANSI 61 gray for outdoor and damp-space reliability. Designed for three-phase switch applications with a 60A rating at 240/480V, it accepts #14-4 Cu/Al wiring and supports quick, service-friendly installations. The combination of ratings and enclosure strengthens maintenance reliability and helps projects meet codes efficiently.
Product Information
Extended Description
DPU362RA Eaton: Eaton air conditioning disconnect, Three-phase switch, 60A, 240/480V, 10 kAIC, #14-4 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 15 hp at 240V, 30 hp at 480V, ANSI 61 gray
Product Name
Eaton air conditioning disconnect
Catalog Number
DPU362RA
UPC
786685547015
Product Length/Depth
9 in
Product Height
9 in
Product Width
5.5 in
Product Weight
3.2 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Type
Three-phase switch
Amperage Rating
60A
Horsepower
15 hp at 240 V, 30 hp at 480 V
Voltage rating
240/480 V
Wire size
#14-4 AWG Cu/Al
Color
ANSI 61 gray
Enclosure
NEMA 3R
Enclosure material
Galvanized steel
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - DPU362RA
Feature: 60A, 240/480V three-phase switch for direct motor isolation. Business Impact: Provides effective fault containment and protects downstream equipment, reducing wiring damage and downtime. Application: Ideal for HVAC units and condensers in commercial and light-industrial facilities. Feature: NEMA 3R galvanized steel enclosure. Business Impact: Delivers weather resistance and corrosion protection for outdoor and damp locations. Application: Suitable for outdoor rooftops, protected mechanical spaces, and damp environments. Feature: Wire size compatibility with #14-4 Cu/Al. Business Impact: Enables flexible sourcing and simplifies field wiring, reducing rework and inventory needs. Application: Easily wired into standard HVAC electrical branches across installations. Feature: Interrupt rating of 10 kAIC. Business Impact: Handles fault currents typical in small to mid-size systems, increasing fault tolerance and operator safety. Application: Suitable for building distributions feeding HVAC compressors and condensers. Feature: CSA Certified and UL Listed with ANSI 61 gray. Business Impact: Meets regulatory requirements and inspection expectations, lowering project risk. Application: For compliant installations in commercial, institutional, and industrial facilities. Feature: HP ratings of 15 hp at 240V and 30 hp at 480V. Business Impact: Aligns with motor load requirements without oversizing, reducing equipment costs. Application: Supports HVAC motor drives and fan assemblies across 240/480V systems.
Get a Quick Quote for a Eaton DPU362RA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DPU362RA?
Enquire Now
FAQs
The DPU362RA is a 60A, 240/480V three-phase disconnect designed for ease of installation. It accepts #14-4 Cu/Al conductors and uses a NEMA 3R galvanized steel enclosure suitable for outdoor and damp locations. Plan for proper wiring routes, terminal torque, and compliant mounting in a suitable enclosure space to meet CSA UL Listed standards.
The device supports 60A with a voltage rating of 240/480V, three-phase operation, and an interrupt rating of 10 kAIC. It is compatible with #14-4 Cu/Al wiring and is rated for up to 15 hp at 240V and 30 hp at 480V, making it suitable for most HVAC disconnect needs.
Yes. The DPU362RA features a NEMA 3R galvanized steel enclosure and ANSI 61 gray finish, providing weather resistance and suitability for outdoor rooftops and damp mechanical spaces while maintaining compliance with UL Listed and CSA Certified standards.
The DPU362RA is CSA Certified and UL Listed, with a NEMA 3R enclosure suitable for outdoor and damp locations. These certifications help support regulatory compliance, installers’ QA processes, and warranty eligibility under Eaton policy 25-000.
By delivering reliable 60A isolation for 240/480V HVAC systems with a durable galvanized enclosure, the DPU362RA can reduce maintenance downtime and rework, shorten installation times, and help ensure regulatory compliance, ultimately lowering total cost of ownership for mid-size commercial and light-industrial projects.
