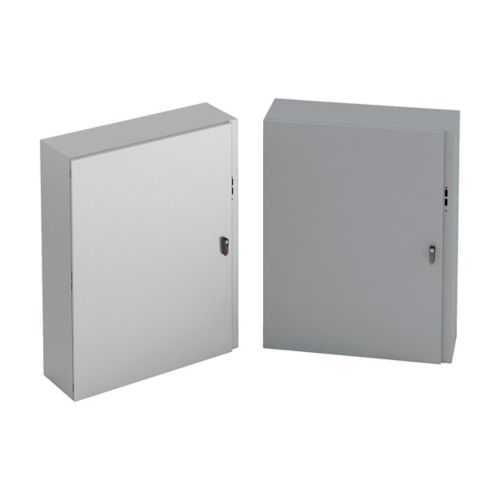

Eaton DSC20228 Wall Mounted Disconnect Enclosure - NEMA 4
Part Number: DSC20228
Quick Summary
Eaton DSC20228 wall mounted disconnect enclosure provides safe, code-compliant power-distribution protection for industrial panels. Too often, maintenance gaps and weather exposure lead to costly downtime and increased lifecycle costs; this enclosure addresses those pain points with durable construction and reliable sealing. UL 50, CSA C22.2, and NEMA ratings underpin dependable performance in harsh environments, while the welded carbon steel build and hinged cover promote long-term integrity. Built for wall mounting with a 20 in height, 22 in width, and 8 in depth footprint, it combines rugged protection with straightforward installation, supporting fast, compliant panel upgrades and consistent safety across industrial facilities.
Product Information
Extended Description
DSC20228 Eaton: Eaton B-Line series wall mounted disconnect enclosure,20" height,8" length,22" width,NEMA 4,Hinged cover,DSC enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC20228
UPC
782051296853
Product Length/Depth
8 in
Product Height
20 in
Product Width
22 in
Product Weight
40.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge, 14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
DSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4
Country of origin
US
Material and construction: The carbon steel body delivers strength and durability in demanding environments, reducing the risk of dents or deformities that can compromise enclosure integrity. Business impact: lower maintenance costs and fewer service calls; Application: harsh industrial plants and outdoor corridors where physical impacts and weather exposure are concerns. Weather sealing and rating: NEMA 4 rating and seamless gasket protection shield internal components from dust, moisture, and incidental water splash. Business impact: improved uptime and compliance with environmental standards; Application: outdoor or wet indoor installations requiring reliable protection. Mounting versatility: 16 gauge and 14 gauge wall thickness provide rigidity, while thru holes and optional external feet enable flexible mounting. Business impact: faster installation and adaptable retrofits; Application: retrofit projects and new builds with limited mounting options. Security features: Defeater padlock provisions and a 2-point latching handle strengthen access control and tamper resistance. Business impact: enhanced security and regulatory compliance; Application: restricted-access control panels and high-security electrical rooms. Footprint and finish: 20 in H x 22 in W x 8 in D, ANSI 61 gray painted carbon steel, 40.6 lb. Business impact: predictable fit within standard rack orientations and durable, low-maintenance aesthetics. Application: general electrical protection in manufacturing, processing, and facility networks.
Get a Quick Quote for a Eaton DSC20228
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC20228?
Enquire Now
FAQs
DSC20228 is designed for standard wall mounting with a 20 in x 22 in x 8 in footprint and thru holes plus optional external mounting feet. It fits typical electrical rooms and retrofit projects, enabling straightforward installation alongside existing equipment without major structural changes.
The enclosure carries UL 50 and CSA C22.2 listings and a NEMA rating of 4, which confirms suitability for indoors and outdoors with protection against dust and moisture ingress. These certifications support regulatory compliance for industrial electrical installations.
Yes. The enclosure includes locking provisions with a defeater padlock option and a 2-point latching handle, enabling secure access control and helping meet site-specific safety policies and regulatory requirements.
Its carbon steel construction with 16 gauge/14 gauge wall thickness and a hinged cover sequence improves structural integrity and seal performance. Proper gasket sealing, correct mounting, and protection from weather exposure maximize uptime in demanding environments.
Yes. The NEMA 4 rating and durable ANSI 61 gray painted carbon steel body are specifically designed for outdoor or semi-outdoor spaces, delivering reliable protection for control panels, motor controls, and other power-distribution assemblies.
