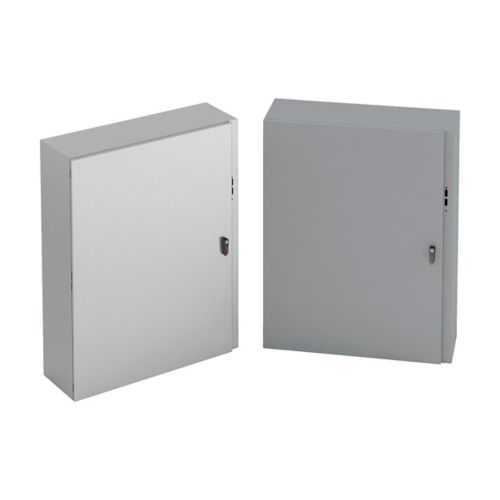

Eaton DSC20228SS4 Wall Mounted Disconnect Enclosure - NEMA 4X
Part Number: DSC20228SS4
Quick Summary
Eaton DSC20228SS4 wall mounted disconnect enclosure provides secure electrical disconnect protection for industrial control panels. In harsh environments, moisture, dust, and vibration can drive maintenance costs and unplanned downtime. This enclosure meets UL 50, CSA C22.2, and NEMA 4X standards to ensure safety and long-term reliability. With 304 stainless steel construction and a seamless poured in-place gasket, it resists corrosion and ingress while minimizing service intervals. The wall-mount design supports thru holes and optional external mounting feet, speeding installation across multiple panels and reducing field labor. This combination delivers lifecycle cost savings for process, manufacturing, and utility environments.
Product Information
Extended Description
DSC20228SS4 Eaton: Eaton B-Line series wall mounted disconnect enclosure,20" height,8" length,22" width,NEMA 4X,Hinged cover,DSCSS4 enclosure,Wall mount,Medium single door,Thru holes,opt. external mounting feet,304 stainless,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC20228SS4
UPC
782051322996
Product Length/Depth
8 in
Product Height
20 in
Product Width
22 in
Product Weight
30.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge, 14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
DSCSS4 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4X
Country of origin
US
Feature → Business Impact → Application: 304 stainless steel construction delivers superior corrosion resistance in damp, corrosive, or wash-down environments, reducing maintenance costs and extending service life in process plants and food & beverage lines. Application: use in wash-down areas and outdoor installations where ingress protection is critical. 2-point latching handle and a hinged cover provide robust security and reliable operation; result is reduced tampering risk and consistent access control for critical feeders and controls. Business Impact: lower downtime and safer maintenance routines, improved operator confidence, and easier compliance audits in regulated settings. Application: ideal for utility, water treatment, and chemical processing facilities that demand durable, code-compliant enclosures. Through holes with optional external mounting feet enable flexible mounting geometry; Business Impact: faster site deployment and easier retrofits across existing panels. Application: retrofit projects and new installations needing quick, secure wall mounting. Seamless poured-in-place gasket protects against dust, moisture, and chemicals; Business Impact: extended enclosure life and reduced ingress-related failures. Application: harsh industrial environments demanding long service intervals and predictable performance.
Get a Quick Quote for a Eaton DSC20228SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC20228SS4?
Enquire Now
FAQs
The DSC20228SS4 is designed for wall mounting with thru holes and optional external mounting feet, enabling flexible placement on concrete or panel walls. Its hinged door, 16/14 gauge wall, and 304 stainless steel construction simplify retrofit and new installations while maintaining a secure seal. Ensure proper alignment, seal the gasket, and use a compatible padlock if required by your safety program.
Key specs include 20 in height, 22 in width, and 8 in depth, with 304 stainless steel construction and a 16 gauge/14 gauge wall thickness. The enclosure carries a NEMA 4X rating and UL 50/CSA C22.2 certifications, with a hinged cover and a 2-point latching mechanism for reliable operation in demanding environments.
Yes. The NEMA 4X rating and 304 stainless steel construction provide corrosion resistance and sealed protection against wind-driven rain, splashes, and humidity. This makes the DSC20228SS4 suitable for outdoor installations, wash-down areas, and damp indoor environments commonly found in manufacturing and utility settings.
The enclosure complies with UL 50 and CSA C22.2, with a NEMA 4X rating. These standards address enclosure integrity, weather resistance, and electrical safety, helping to satisfy industry regulations for industrial control panels, process automation, and safety audits across multiple sectors.
Maintenance is minimized by using 304 stainless steel and a seamless gasket—reducing corrosion-related downtime and cleaning needs. The hinged cover, defeater padlock provisions, and 2-point latching improve security and access control. Over the life of a facility, this translates to lower replacement costs, fewer service disruptions, and improved overall ROI.
