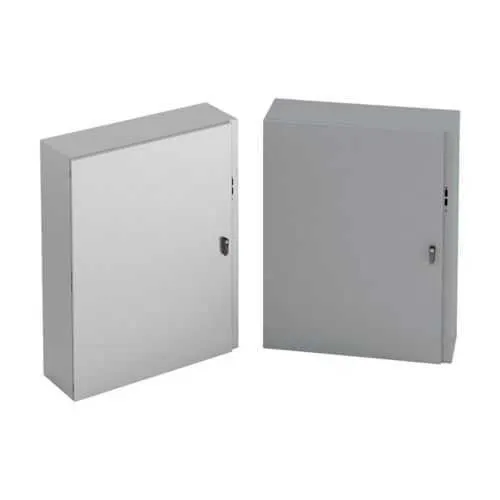

Eaton DSC20228SS6 Wall Mounted Disconnect Enclosure - NEMA4X
Part Number: DSC20228SS6
Quick Summary
Eaton DSC20228SS6 is a wall-mounted disconnect enclosure that safely isolates electrical gear in industrial control panels. Operators often face downtime and safety risks when enclosures leak, corrode, or obstruct service access. This model delivers NEMA 4X protection with UL 50 and CSA C22.2 certifications, supporting reliable performance in corrosive or washdown environments. Built from 316 stainless steel with a 16 gauge, 14 gauge wall, it combines durability with secure, tool-friendly access. For installers and maintenance teams, the enclosure enables fast servicing and compliant electrical protection in process lines, outdoor installations, and harsh plant areas, delivering long-term value and reduced lifecycle costs. Its hinged cover and thru holes support flexible mounting, with optional external feet for varied layouts.
Product Information
Extended Description
DSC20228SS6 Eaton: Eaton B-Line series wall mounted disconnect enclosure,20" height,8" length,22" width,NEMA 4X,Hinged cover,DSCSS6 enclosure,Wall mount,Medium single door,Thru holes,opt. external mounting feet,316 stainless,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC20228SS6
UPC
782051323016
Product Length/Depth
8 in
Product Height
20 in
Product Width
22 in
Product Weight
30.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge, 14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
DSCSS6 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction provides excellent corrosion resistance and washdown durability. Business impact: Extends enclosure life in harsh environments, reducing replacement costs and downtime. Application: Suitably deployed in chemical plants, food and beverage processing, and outdoor substations. Feature: NEMA 4X rating with seamless poured-in-place gasket ensures superior ingress protection. Business impact: Maintains internal circuitry integrity, lowering maintenance spikes and rework. Application: Ideal for high-moisture, dusty, or chemical exposure areas on the plant floor. Feature: Hinged cover with 2-point latching handle and defeater padlock provision enhances security and maintenance workflow. Business impact: Reduces risk of unauthorized access while enabling quick servicing windows. Application: Critical for control panels in regulated environments and peak-shift maintenance. Feature: Wall-mount design with thru holes and optional external mounting feet provides installation flexibility. Business impact: Simplifies retrofits and ensures robust mounting on varied wall substrates. Application: Suitable for existing installations requiring adaptable footprint in process lines and outdoor spaces. Feature: Medium single door model with standard 20 in height, 22 in width, and 8 in depth balances capacity and space. Business impact: Enables sufficient internal volume for typical circuit protection assemblies while preserving facility layout. Application: Common in electrical protection and circuit control workflows across industrial facilities.
Get a Quick Quote for a Eaton DSC20228SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC20228SS6?
Enquire Now
FAQs
The DSC20228SS6 supports wall mounting with through holes and optional external mounting feet, enabling flexible placement on various wall substrates. Its hinged cover and 2-point latching handle simplify service access while maintaining security. This combination reduces installation time and allows quick reconfiguration for changing process layouts or expansion projects.
Key specs include a 20 in height, 22 in width, 8 in depth footprint, 316 stainless steel construction, 16 gauge/14 gauge wall, and a NEMA 4X rating. Certifications include UL 50 and CSA C22.2. The result is a corrosion-resistant, ingress-protected enclosure suitable for washdown and harsh industrial environments.
Yes. The enclosure is rated NEMA 4X and constructed from 316 stainless steel with seamless gasket sealing, providing excellent resistance to water, dust, and corrosive environments. This makes it well-suited for outdoor installations, chemical plants, and other washdown-heavy facilities where reliability and cleanliness are critical.
The enclosure includes a defeater padlockProvision and a two-point latching system on the hinged cover. This setup enables secure access control to protect protected circuits while allowing authorized maintenance personnel to open the enclosure quickly during scheduled service, improving safety and regulatory compliance on the shop floor.
Engineers can expect reduced downtime thanks to reliable sealing and easy service access, extended equipment life due to corrosion resistance, and lower lifecycle costs from fewer enclosure replacements. The 316 stainless steel build and robust gasket system also support longer service intervals in high-humidity or washdown environments, delivering measurable uptime gains.
