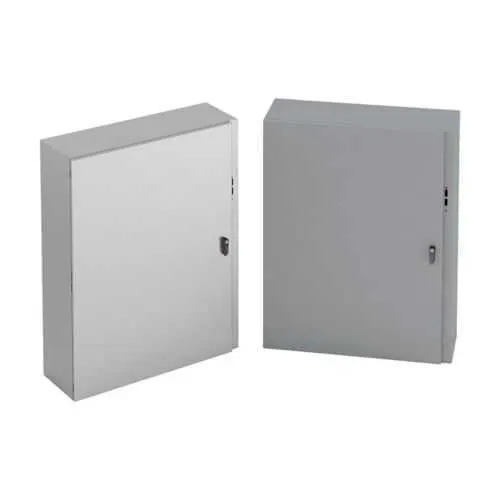

Eaton DSC24228 Disconnect Enclosure - NEMA 4
Part Number: DSC24228
Quick Summary
Eaton DSC24228 Disconnect Enclosure protects power circuits by housing a wall-mounted disconnect for industrial equipment control. Engineers often face bulky, weather-exposed enclosures that complicate installation and extend maintenance cycles. This unit meets UL 50, CSA C22.2, and NEMA 4 standards, delivering reliable protection in harsh environments. Designed for wall-mount installations with options like external mounting feet and a hinged cover, it supports quick serviceability while delivering long-term value for panel builders and OEMs.
Product Information
Extended Description
DSC24228 Eaton: Eaton B-Line series wall mounted disconnect enclosure,24" height,8" length,22" width,NEMA 4,Hinged cover,DSC enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC24228
UPC
782051296877
Product Length/Depth
8 in
Product Height
24 in
Product Width
22 in
Product Weight
46.9 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge, 14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
DSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4
Country of origin
US
Feature: Wall-mounted disconnect enclosure design minimizes floor space usage and simplifies installation, reducing project timelines and enabling easier access for routine maintenance. Business impact: Faster commissioning and lower labor costs during retrofits and new builds. Application: Industrial facilities, manufacturing lines, and machine control panels. Feature: Carbon steel construction with 16/14 gauge walls and ANSI 61 gray painted finish provides durable protection against impact and corrosion. Business impact: Longer service life and reduced replacement costs in demanding environments. Application: High-traffic electrical rooms and outdoor-adjacent spaces. Feature: Seamless poured-in-place gasket and hinged cover deliver reliable dust, moisture, and ingress protection. Business impact: Maintains circuit integrity and minimizes unplanned downtime. Application: Environments with dust, humidity, and cleaning regimes. Feature: Defeater padlock provisions and 2-point latching handle enhance security and tamper resistance. Business impact: Improved regulatory compliance and reduced risk of access breaches. Application: Security-conscious installations in manufacturing and distribution hubs. Feature: Thru holes and optional external mounting feet offer mounting flexibility and alignment precision. Business impact: Versatile commissioning and faster field installation. Application: Wall-mounted installations with varied mounting surfaces. Feature: Dimensions of 24 in x 22 in x 8 in and weight of 46.9 lb provide predictable fit and handling. Business impact: Easier freight planning and safer handling during installation. Application: Mid-size disconnect enclosures in controlled plant spaces. Certifications: UL 50, CSA C22.2, NEMA 4, US origin, supporting compliance and traceability. Application: General electrical protection for commercial and industrial panels.
Get a Quick Quote for a Eaton DSC24228
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC24228?
Enquire Now
FAQs
Installers should plan for wall mounting with thru holes and consider optional external mounting feet for added stability. Verify mounting surface is plumb and capable of supporting 46.9 lb. Use the hinged cover for accessible maintenance and ensure gasket seating remains intact after installation to maintain NEMA 4 integrity. The unit’s dimensions help determine enclosure placement around existing equipment.
DSC24228 features a NEMA 4 rating with UL 50 and CSA C22.2 certifications, indicating resistance to dust and moisture ingress. Its carbon steel body with 16/14 gauge walls provides rugged protection, while a hinged cover and 2-point latching handle enable secure operation. The unit is sized for medium single-door service, delivering reliable isolation in a compact footprint.
Yes. The enclosure is designed as a NEMA 4 rated solution with a seamless gasket and painted ANSI 61 gray finish, offering protection against dust, moisture, and incidental impacts. Its durable carbon steel construction and secure locking provisions help maintain safe, compliant operation in factory floors, mix of chemicals, or outdoor-adjacent spaces.
The DSC24228 carries UL 50 and CSA C22.2 certifications, confirming compliance with recognized electrical enclosure standards. The NEMA 4 rating further supports compliance for protective enclosures exposed to moisture and dust. These certifications help engineers meet industry requirements for safety, reliability, and traceability in industrial installations.
The rugged Carbon steel enclosure reduces maintenance costs by resisting corrosion and weathering, lowering replacement frequency. Its hinged cover and secure locking features minimize downtime during servicing and deter tampering. Routine inspection of the gasket, door alignment, and mounting hardware preserves protection performance, delivering ongoing reliability and improved plant uptime with predictable maintenance budgets.
