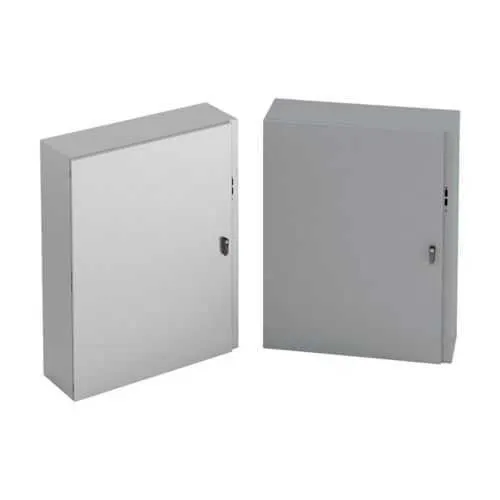

Eaton DSC24268 Wall Mounted Disconnect Enclosure - NEMA 4
Part Number: DSC24268
Quick Summary
Eaton DSC24268 wall mounted disconnect enclosure protects electrical disconnects in industrial control panels. It addresses common challenges like moisture ingress, dust intrusion, and security concerns by pairing a rugged carbon steel body with a seamless gasket. This enclosure carries UL 50, CSA C22.2, and NEMA 4 ratings, underscoring its reliability in harsh environments. By delivering robust protection with easy mounting and secure access, it supports safer installations, longer component life, and reduced maintenance costs for industrial facilities and OEM panels. Use this B-Line series enclosure to simplify compliance while keeping critical equipment organized and accessible for service.
Product Information
Extended Description
DSC24268 Eaton: Eaton B-Line series wall mounted disconnect enclosure,24" height,8" length,26" width,NEMA 4,Hinged cover,DSC enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC24268
UPC
782051296884
Product Length/Depth
8 in
Product Height
24 in
Product Width
26 in
Product Weight
53.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge, 14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
DSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4
Country of origin
US
Feature: NEMA 4 rated enclosure with seamless poured in-place gasket → Business Impact: Delivers reliable weatherproof protection against moisture, dust, and corrosion in indoor/outdoor settings → Application: Ideal for factories, warehouses, and outdoor control panels where environmental exposure is a concern. Feature: Carbon steel construction with 16 gauge/14 gauge wall thickness and ANSI 61 gray painted finish → Business Impact: Enhances durability and long-term corrosion resistance, reducing replacement costs and downtime → Application: Suitable for high-traffic industrial environments and rugged control applications. Feature: Hinged cover with 2-point latching handle and defeater padlock provision → Business Impact: Improves user access security and simplifies lockout/tagout procedures, lowering theft and tampering risk → Application: Control cabinet in production lines requiring secure access. Feature: Wall mounting with thru holes and optional external mounting feet → Business Impact: Enables flexible installation using existing walls or anchored bases, speeding up commissioning → Application: OEM panels and retrofit projects where mounting options influence project timelines. Feature: Medium single door model with 24 in H x 26 in W x 8 in D dimensions and 53.8 lb weight → Business Impact: Provides ample internal space for mid-size disconnect assemblies while staying manageable for field mounting → Application: Suitable for medium-sized electrical distributions and service disconnects. Feature: B-Line series enclosure compatibility and UL/CSA/NEMA certifications → Business Impact: Ensures standardization across facilities and regulatory compliance across jurisdictions → Application: Ideal for multi-site deployments, panel houses, and regulated industries. Long-tail keywords naturally embedded: wall mounted disconnect enclosure, Eaton B-Line series, carbon steel enclosure, hinged cover, padlock provision, through holes mounting, NEMA 4 enclosure, outdoor panel protection, industrial control panels, control cabinet security.
Get a Quick Quote for a Eaton DSC24268
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC24268?
Enquire Now
FAQs
Mounting is designed for flexibility with thru holes on the enclosure and optional external mounting feet. Use wall anchors or studs appropriate for 16 or 14 gauge substrates, align the holes, insert fasteners, and verify level. Leave space for service access and wiring clearance, and consider adding external feet if freestanding support is needed in elevated installations.
Key specs include 24 in height, 26 in width, 8 in depth; weight 53.8 lb; carbon steel construction with 16/14 gauge walls; ANSI 61 gray painted finish; NEMA 4 rating; hinged cover; 2-point latching handle; defeater padlock provision; UL 50 and CSA C22.2 certifications.
Yes, the enclosure is NEMA 4 rated, providing weather and corrosion resistance suitable for outdoor and harsh indoor environments. Pair this with the seamless gasket and metal enclosure finish to protect interior components from moisture, dust, and other contaminants while maintaining serviceability.
The DSC24268 conforms to UL 50 and CSA C22.2 standards and carries a NEMA 4 rating, confirming its suitability for moisture exposure and harsh environments typically found in industrial facilities.
Its carbon steel construction with a durable ANSI 61 gray paint finish resists wear in demanding settings, while the seamless gasket minimizes ingress. The hinged cover with a 2-point latch and padlock provision supports reliable security and reduces downtime during maintenance and service interventions.
