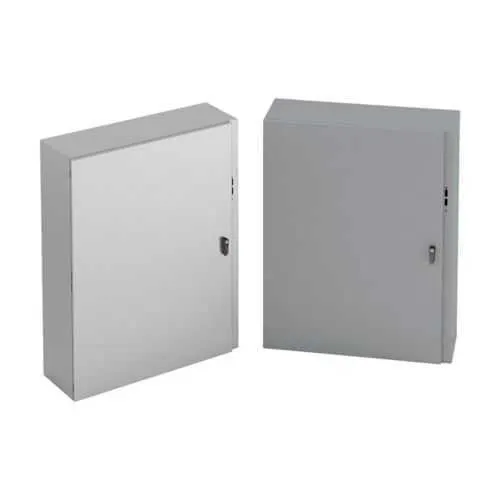

Eaton DSC24268SS4 Wall-Mounted Disconnect Enclosure - NEMA 4X
Part Number: DSC24268SS4
Quick Summary
Eaton DSC24268SS4 wall-mounted disconnect enclosure provides rugged electrical protection for industrial control panels in harsh environments. Maintenance teams struggle with moisture ingress, gasket leaks, and difficult field servicing, which can lead to downtime and safety risks. This enclosure carries UL 50, CSA C22.2, and NEMA 4X ratings, signaling reliable performance in harsh or corrosive spaces. Built from 304 stainless steel with a 14 gauge wall and seamless gasket, it resists corrosion and seals effectively. As part of the Eaton B-Line series, it combines durable construction with easy wall mounting and optional external feet, delivering long-term value through reduced maintenance and improved compliance.
Product Information
Extended Description
DSC24268SS4 Eaton: Eaton B-Line series wall mounted disconnect enclosure,24" height,8" length,26" width,NEMA 4X,Hinged cover,DSCSS4 enclosure,Wall mount,Medium single door,Thru holes,opt. external mounting feet,304 stainless,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC24268SS4
UPC
782051323061
Product Length/Depth
8 in
Product Height
24 in
Product Width
26 in
Product Weight
40.1 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
14 gauge, 14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
DSCSS4 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
2-pt latching handle
NEMA Rating
4X
Country of origin
US
Feature → Business Impact → ApplicationFeature: 304 stainless steel construction and 14 gauge wall provide superior corrosion resistance in washdown and chemical environments. Impact: extends service life, lowers replacement costs, and reduces maintenance downtime. Application: ideal for food processing, chemical plants, and outdoor switchgear enclosures where exposure to moisture and chemicals is routine.Feature: NEMA 4X sealing with a seamless poured-in-place gasket and hinged cover. Impact: reliable ingress protection against water, dust, and washdown cycles, boosting safety and uptime. Application: control panels in demanding manufacturing lines, robotics/IP-rated zones, and outdoor installations.Feature: Wall-mount design with thru holes and optional external mounting feet. Impact: flexible installation in tight spaces and variable mounting heights, simplifying retrofits. Application: retrofit projects in existing control rooms or compact plant layouts.Feature: Defeater padlock provision and 2-point latching handle. Impact: enhanced security and controlled access with quick, tool-free servicing. Application: critical process panels where unauthorized access must be prevented and maintenance windows are brief.Feature: Hinged cover and medium single-door model DSCSS4. Impact: easy, repeatable servicing without compromising enclosure integrity. Application: centralized disconnect points in MCCs and electrical distribution panels, supporting streamlined maintenance workflows.
Get a Quick Quote for a Eaton DSC24268SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC24268SS4?
Enquire Now
FAQs
The DSC24268SS4 is designed for wall mounting with through holes and optional external mounting feet. This enables flexible installation in tight plant spaces or retrofit projects, allowing you to position the enclosure at an optimal height for accessibility and wiring routing while maintaining enclosure integrity and sealing performance.
Constructed from 304 stainless steel with a 14 gauge wall, the enclosure provides excellent corrosion resistance. It carries NEMA 4X sealing, UL 50 and CSA C22.2 certifications, and a seamless poured-in-place gasket, making it suitable for washdown, dust, and basic outdoor exposure in harsh industrial environments.
Yes. The combination of 304 stainless steel construction and NEMA 4X sealing makes it well-suited for outdoor and washdown applications. The robust gasket system and hinged door design help prevent moisture ingress, supporting reliable operation in challenging environments.
Security is enhanced with a defeater padlock provision and a 2-point latching handle, enabling controlled access during maintenance while ensuring the integrity of the enclosure when closed. The hinged cover provides easy, repeated access for servicing without compromising safety or protection.
The enclosure measures 24 inches in height, 26 inches in width, and 8 inches in depth, with an approximate weight of 40.1 lb. These dimensions support straightforward space planning and mock-up assessments in control rooms, electrical closets, or outdoor installations.
