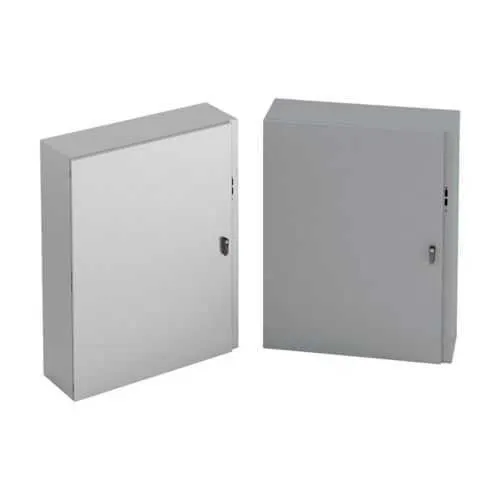

Eaton DSC423812SS6 Wall Mounted Enclosure - NEMA 4X
Part Number: DSC423812SS6
Quick Summary
Eaton DSC423812SS6 wall mounted disconnect enclosure protects electrical disconnects in industrial control panels. Maintenance teams contend with corrosion, weather exposure, and tamper risks in harsh environments. UL 50, CSA C22.2, and NEMA 4X ratings ensure compliance and rugged service life. Built from 316 stainless steel with 14 gauge walls, it supports long-term reliability and resale value. A wall-mount design and optional feet simplify retrofits, while 3-point latching enhances security. For designers and buyers, this enclosure reduces installation risk by providing thru-hole mounting, optional external feet, and clear labeling that aligns with facility standards. Long-term ownership is supported by hassle-free service, standard hinged cover, defeater padlock provisions, and compatible enclosure accessories from Eaton.
Product Information
Extended Description
DSC423812SS6 Eaton: Eaton B-Line series wall mounted disconnect enclosure,42" height,12" length,38" width,NEMA 4X,Hinged cover,DSCSS6 enclosure,Wall mount,Medium single door,Thru holes,opt. external mounting feet,316 stainless,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC423812SS6
UPC
782051323184
Product Length/Depth
12 in
Product Height
42 in
Product Width
38 in
Product Weight
119.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
14 gauge, 14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
DSCSS6 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction with 14 gauge walls and a #4 brushed finish; Business Impact: Delivers superior corrosion resistance and rugged durability in harsh environments, reducing maintenance cycles and replacement costs; Application: Washdown areas, chemical plants, and outdoor substations where moisture and corrosive exposure are common. Feature → Business Impact → Application. Feature: NEMA 4X sealing with a seamless poured-in-place gasket and hinged cover; Business Impact: Ensures weather-tight performance and tamper resistance, lowering ingress risk and service disruptions; Application: Outdoor installations and facilities with stringent ingress protection requirements. Feature: 3-point latching handle with defeater padlock provisions; Business Impact: Strengthens access control and security, supporting regulatory compliance and safety policies; Application: Electrical rooms, control panels, and secured areas in industrial facilities. Feature: Thru-hole mounting with optional external mounting feet; Business Impact: Simplifies retrofits and alignment, reducing installation time and field labor; Application: Upgrading existing enclosures or integrating into complex layouts. Feature: Large internal volume (42 x 38 x 12 in) supports sizable disconnects and future expansion; Business Impact: Reduces the need for multiple enclosures, streamlining space and lifecycle costs; Application: Main disconnects in MCCs and panel windows where space planning is critical.
Get a Quick Quote for a Eaton DSC423812SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC423812SS6?
Enquire Now
FAQs
The enclosure is designed for wall mounting using thru holes and optional external feet. Start by preparing a flat, stable mounting surface and selecting appropriate fasteners for your substrate. Align the enclosure, secure the thru holes or feet, then attach the cover. The hinged door and 3-point latch simplify operation while maintaining a seal. Check gasket seating and door clearance to ensure proper performance.
This unit is 42 inches high, 38 inches wide, and 12 inches deep, constructed from 316 stainless steel with 14 gauge walls and a #4 brushed finish. It carries UL 50 and CSA C22.2 listings with a NEMA 4X rating. Features include a hinged cover, thru-hole mounting, optional external feet, defeater padlock provisions, and a 3-point latching handle for secure access.
Yes. The NEMA 4X rating plus 316 stainless steel construction provides robust corrosion resistance and weather sealing, making it suitable for outdoor substations, washdown areas, and other harsh industrial settings. The seamless gasket and hinged cover maintain a tight seal, while the optional mounting feet offer additional protection in high-pressure environments.
Security is enhanced by a defeater padlock provision and a 3-point latching handle, which together resist tampering and unauthorized access. The stainless steel body also adds rigidity and durability, helping to meet facility safety policies. For regulated environments, ensure compatible padlocks meet organizational requirements and standards.
The DSC423812SS6 supports wall mounting via thru holes and optional external mounting feet. Eaton offers compatible hardware and sealing accessories, with the 316 stainless steel body suitable for retrofit projects in demanding environments. Always refer to the datasheet for recommended fasteners, gasket replacements, and any supplementary accessories to maintain NEMA 4X integrity.
