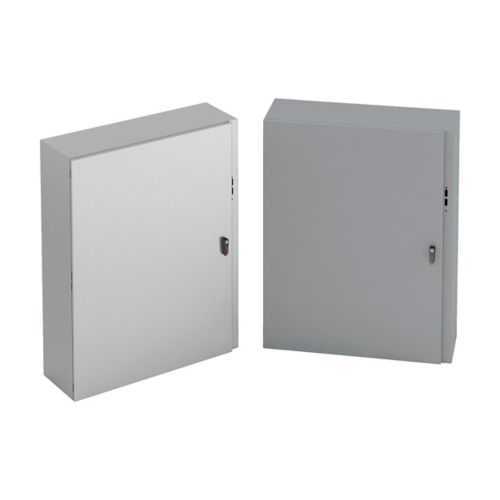

Eaton DSC603812 Wall Mounted Disconnect Enclosure - NEMA 4
Part Number: DSC603812
Quick Summary
Eaton DSC603812 wall mounted disconnect enclosure provides robust electrical protection for industrial control panels in demanding environments. Installers often wrestle with space constraints, weather exposure, and downtime during maintenance. UL 50, CSA C22.2, and NEMA 4 certifications back its performance by delivering weatherproof sealing and safe operation. With a durable carbon steel frame and a hinged, 3‑point latching door, it supports reliable service life, while optional external feet and through-mount holes simplify retrofits. This enclosure is designed to integrate with Eaton B-Line systems, delivering scalable protection for power distribution and automation assets. For procurement teams, the standardized dimensions and weight help with planning and on-site logistics.
Product Information
Extended Description
DSC603812 Eaton: Eaton B-Line series wall mounted disconnect enclosure,60" height,12" length,38" width,NEMA 4,Hinged cover,DSC enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
Product Name
Eaton B-Line series wall mounted disconnect enclosure
Catalog Number
DSC603812
UPC
782051297003
Product Length/Depth
12 in
Product Height
60 in
Product Width
38 in
Product Weight
202.4 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge, 14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
DSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes, optional external mounting feet
Locking provisions
Defeater padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4
Country of origin
US
The enclosure features a large carbon steel body with 60 in height, 38 in width, and 12 in depth, plus 14 gauge wall construction and a seamless poured in-place gasket to deliver durable, weatherproof protection. This translates to reduced maintenance cycles and lower risk of ingress in harsh environments, supporting uninterrupted operations in manufacturing lines and outdoor substations. The design supports efficient service and quick access for authorized personnel, enabling faster maintenance and reduced downtime in critical control panels. Applications include heavy-duty disconnects in process automation and power distribution where space and protection are paramount. The NEMA 4 rating and painted ANSI 61 gray finish also contribute to long-term reliability in damp or dusty facilities. Overall, this enclosure enhances lifecycle costs and compliance readiness for industrial facilities.
Get a Quick Quote for a Eaton DSC603812
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DSC603812?
Enquire Now
FAQs
DSC603812 supports wall mounting with thru holes and optional external mounting feet for retrofit and new installations. Site planners should align the enclosure to the mounting surface, secure through holes or feet as needed, and seal the gasket interface to maintain NEMA 4 weatherproof integrity. Plan sleeve spacings and access clearances for service tasks and lockout procedures.
The enclosure is rated NEMA 4 and carries UL 50 and CSA C22.2 certifications, indicating reliable protection against dust, water, and corrosion in hostile environments. These ratings support compliance with safety and performance standards for outdoor and damp indoor installations, reducing project risk and simplifying approvals for industrial automation and power distribution projects.
The DSC603812 measures 60 inches in height, 38 inches in width, and 12 inches in depth and weighs approximately 202.4 pounds. These dimensions affect footprint planning, rigging during installation, and enclosure handling in narrow aisles or crowded electrical rooms. Include appropriate lifting and floor loading considerations in site surveys.
This enclosure is ideal for rugged disconnecting services in manufacturing lines, process automation, and outdoor service areas where a durable, secure, weatherproof housing is required. It accommodates medium single-door configurations with a hinged cover and 3‑point latching for secure operation and straightforward maintenance in demanding environments.
Security features include a defeater padlock provision and a 3‑point latching handle for controlled access. The hinged closure and seamless gasket protect internal components from ingress, while external mounting feet and thru holes support flexible mounting strategies. Together, these elements help meet lockout/tagout practices and reduce unscheduled downtime.
