Eaton DT223URH Safety Switch - UL Listed, NEMA 3R Rainproof
Part Number: DT223URH
Quick Summary
Eaton DT223URH safety switch provides reliable isolation for 100 A circuits in industrial control panels and service entrances. Field failures during outdoor exposure or complex service-entry setups can drive downtime and risk, so reliability is paramount. This general-duty double-throw switch features a NEMA 3R rainproof enclosure and galvanized steel construction to withstand harsh environments, while UL Listed certification supports compliance. The unit is also suitable for service entrances when used with a neutral kit, delivering installation flexibility and future-proofing for feeder configurations. By combining rugged protection with installer-friendly features, it offers meaningful value for maintenance teams and procurement professionals seeking predictable uptime and lower total cost of ownership.
Product Information
Extended Description

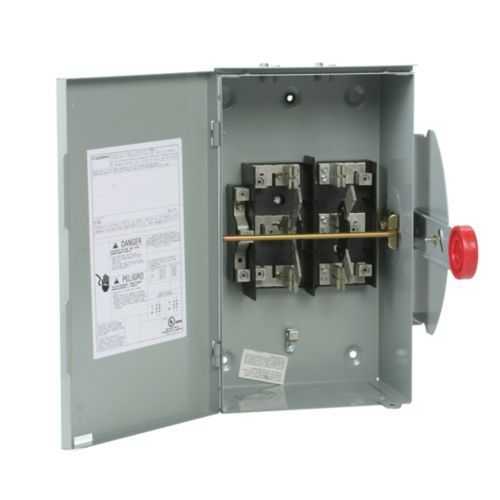

DT223URH Eaton: Eaton general duty double-throw safety switch, 100 A, Compact design, NEMA 3R, Painted galvanized steel, Rainproof, Non-fusible, Two-pole, Two-wire, 240 Vac
Product Name
Eaton general duty double-throw safety switch
Catalog Number
DT223URH
UPC
782114886816
Product Length/Depth
9.88 in
Product Height
24.63 in
Product Width
11.94 in
Product Weight
34 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral kit installed
Feature: 100 A, non-fusible, two-pole, two-wire design → Business Impact: provides safe, reliable isolation for primary feeders and control circuits, reducing fault propagation and enabling compliant lockout/tagout procedures → Application: ideal for industrial panels and equipment rooms requiring robust, straightforward protection. Long-tail keywords integrated: 100 A safety switch, non-fusible switch, two-pole two-wire protection. Feature: NEMA 3R rainproof enclosure with galvanized steel → Business Impact: enables outdoor and service entrance installations with weather resistance and corrosion protection, lowering maintenance cycles and replacement costs → Application: outdoor electrical protection in harsh environments and outdoor service entrances. Long-tail keywords: NEMA 3R enclosure, rainproof electrical switch, outdoor protection. Feature: Compact design with 9.88 in depth, 11.94 in width, 24.63 in height → Business Impact: minimizes panel footprint and simplifies mounting, yielding space savings and faster installation on crowded panels → Application: retrofit projects and new builds with tight enclosure confines. Long-tail keywords: compact safety switch, space-saving electrical switch, panel mounting. Feature: UL Listed certification → Business Impact: provides regulatory confidence and faster procurement through recognized safety compliance → Application: industry-standard electrical protection in compliant facilities. Long-tail keywords: UL Listed safety device, regulatory compliance. Feature: Neutral-kit compatible for service entrances → Business Impact: supports flexible feeder configurations and easier integration with main service disconnects → Application: service-entrance sizing and neutral kit installations for commercial and industrial feeders. Long-tail keywords: service entrance compatibility, neutral kit installed. Feature: Warranty and support (one year from installation or 18 months from shipment) → Business Impact: reduces risk and total cost of ownership with defined coverage and vendor support → Application: asset lifecycle management for maintenance planning and procurement.
Get a Quick Quote for a Eaton DT223URH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DT223URH?
Enquire Now
FAQs
The DT223URH is suitable for service entrance use when a neutral kit is installed, enabling flexible feeder configurations and compliant disconnecting of main circuits in outdoor or indoor service entries.
It is UL Listed and features a NEMA 3R rainproof enclosure, suitable for outdoor installations. The galvanized steel construction adds durability and long-term protection in harsh environments.
Yes. With a NEMA 3R rainproof enclosure and galvanized steel body, the DT223URH is designed for outdoor service entrances and weather-exposed panels.
Plan for its 9.88 in depth, 11.94 in width, and 24.63 in height, with a weight of 34 lb. Ensure mounting space, proper sealing for outdoor use, and compatibility with a neutral kit if service entrance configuration is required.
The product carries Eaton's policy: one year from installation or eighteen months from shipment, whichever occurs first, providing coverage for defects and workmanship during typical asset lifecycles.
