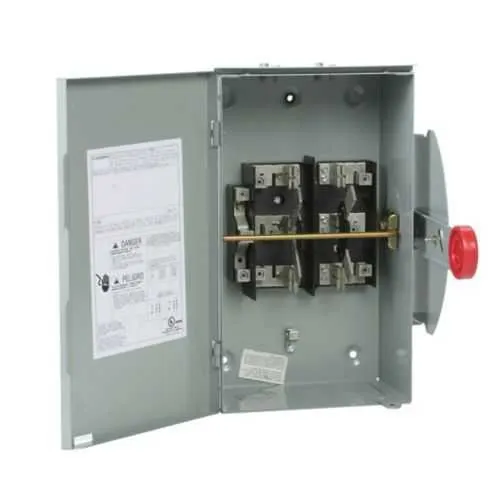

Eaton DT223URH-NP Safety Switch - UL Listed
Part Number: DT223URH-NP
Quick Summary
Eaton DT223URH-NP is a general-duty double-throw safety switch for 100 A circuits in industrial control panels. For technicians facing space constraints and exposure to the elements, a compact, rainproof solution matters. UL Listed and NEMA 3R-rated, this unit is designed to endure outdoor and harsh indoor environments while preserving safe isolation. Its compact design and included neutral support fast installation, while overall lifecycle cost is reduced through reliable operation and easy maintenance. Compatibility with two-pole, three-wire configurations at 240 V makes it suitable for motor disconnects, line-side protection, and equipment control across manufacturing lines. From engineering specs to field service, the DT223URH-NP supports efficient procurement and dependable performance.
Product Information
Extended Description
DT223URH-NP Eaton: Eaton general duty double-throw safety switch, 100 A, Compact design, Includes neutral, NEMA 3R, Painted galvanized steel, Rainproof, Non-fusible, Two-pole, Three-wire, 240 Vac, Retail Packaging
Product Name
Eaton general duty double-throw safety switch
Catalog Number
DT223URH-NP
UPC
786689670016
Product Length/Depth
9.88 in
Product Height
8.5 in
Product Width
10 in
Product Weight
11.49 lb
Certifications
UL Listed
Feature → Benefit → Application: General-duty double-throw design provides reliable isolation for critical power paths, enabling quick, safe disconnection of loads with minimal downtime in industrial control panels. This translates to improved equipment protection and smoother maintenance windows for conveyors, pumps, and motors. Compatibility with 240 VAC, 100 A, two-pole, three-wire configurations ensures broad applicability across motor drives and line-side disconnects, helping engineers standardize protective devices without over-specifying. The unit is non-fusible, simplifies maintenance, and reduces spare parts complexity in centralized protection schemes, delivering cost savings over time. The included neutral simplifies circuit wiring and reduces field wiring errors, while the painted galvanized steel enclosure offers durable resistance to corrosion in harsh environments. NEMA 3R rating and rainproof construction provide dependable outdoor performance, aligning with outdoor control panels and weather-exposed enclosures. The compact 9.88 in depth, 10 in width, and 8.5 in height footprint supports installation in tighter spaces, improving panel density and reducing cabinet modifications. UL Listed certification reinforces compliance with safety and quality standards, giving procurement teams confidence in vendor support and long-term serviceability.
Get a Quick Quote for a Eaton DT223URH-NP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DT223URH-NP?
Enquire Now
FAQs
Yes. The DT223URH-NP is UL Listed and NEMA 3R rated, designed for outdoor use and weather-exposed indoor environments. It supports a two-pole, three-wire configuration at 240 V with an included neutral, making it suitable for outdoor control panels and disconnects in harsh environments.
This is a non-fusible, general-duty double-throw switch rated at 100 A, 240 VAC, with two poles and three wires. It includes a neutral connection and is suitable for safe isolation of loads in motor and equipment circuits within industrial applications.
The DT223URH-NP is UL Listed and NEMA 3R rated. UL Listing confirms compliance with safety standards, while NEMA 3R indicates rainproof, weather-resistant enclosure suitability. These certifications support reliability in outdoor installations and simplify procurement for compliant projects.
Yes. With a compact footprint—9.88 in deep, 10 in wide, and 8.5 in high—and a weight of about 11.49 lb, it fits tighter panels and smaller enclosures common in modern industrial settings without sacrificing electrical protection or performance.
Best suited for general-duty disconnects in industrial automation, outdoor equipment, and control panels requiring reliable isolation at 100 A and 240 VAC. Its durable enclosure, ease of installation, and minimal maintenance contribute to reduced downtime and lower life-cycle costs, delivering a favorable return on investment for projects with outdoor or weather-exposed electrical protections.
