Eaton E2LEM36002WU66 Complete MCCB - UL/IEC/CSA
Part Number: E2LEM36002WU66
Quick Summary
The Eaton E2LEM36002WU66 protects mining electrical systems with a complete molded case circuit breaker for heavy-duty loads. Engineers and maintenance teams often face challenges achieving reliable trip performance while simplifying field wiring and replacement tasks. This device carries UL Listed, IEC rated, and CSA Certified marks, ensuring cross-border compliance for mining installations. With its compact L-frame design and robust 600 A rating, it supports efficient power distribution in harsh mining environments and lowers total cost of ownership. Seamless integration with existing switchgear, line and load terminals, and three-pole trigger logic supports rapid deployment in new builds and retrofits. This combination translates to higher uptime, improved safety, and streamlined regulatory readiness across operations.
Product Information
Extended Description
E2LEM36002WU66 Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LEM, Electronic LI trip, 2500-5000A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, Line and Load, Mining, 110-127 VAC UVR
Product Name

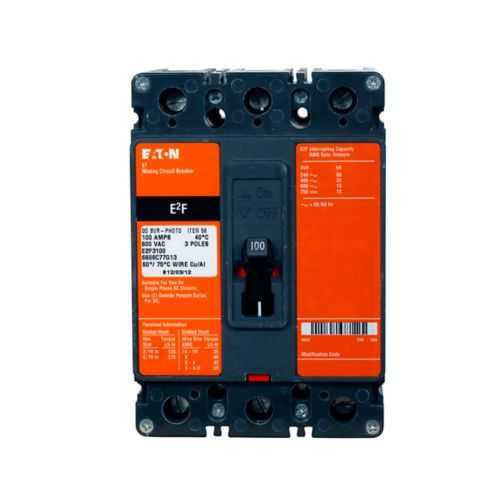

Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LEM36002WU66
UPC
786689660536
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
20 lb
Certifications
UL Listed IEC Rated CSA Certified
Type
E2 mining
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2LEM
Circuit breaker frame type
Complete breaker
Terminals
Line and Load
Frame
L
Class
Mining
Interrupt rating
25 kAIC at 600 Vac 22 kAIC at 250 Vdc 10 kAIC at 1000Y/577 Vac 65 kAIC at 240 Vac 35 kAIC at 480 Vac
Number of poles
Three-pole
Trip rating
2500-5000 A
