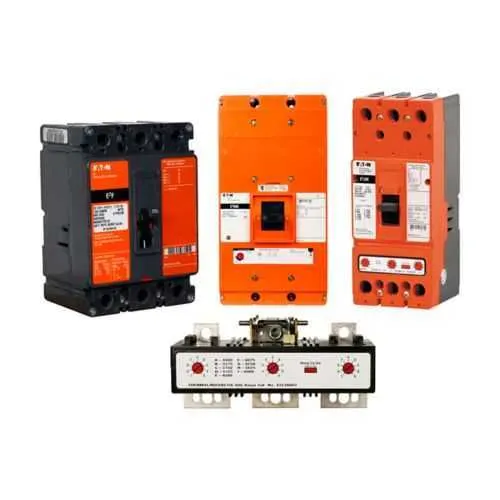

Eaton E2LEM3600MWA06U66 Mining MCCB - UL/CSA Listed

Feature: L-frame, three-pole design with a 600 A amperage rating and a voltage profile of 1000Y/577 Vac and 250 Vdc. Business Impact: Delivers robust, high-current protection for three-phase mining circuits, reducing risk of arc faults and unplanned outages. Application: Bulk power feeds and main distribution in underground mining facilities. Feature: Trip Type T165 with a 500-2500 A trip rating and multiple interrupt levels (up to 65 kAIC at 240 Vac). Business Impact: Handles heavy fault currents and large inrush events common in mining operations, improving system availability. Application: Primary protection in mining switchgear and feeder panels.Feature: Auxiliary switch and undervoltage release options (1A-1B rear with right pigtail; 120 Vac rear with left pigtail). Business Impact: Enables remote signaling and control integration with plant automation, reducing maintenance visits. Application: Control room interfaces and remote tripping schemes.Feature: Frame L, complete breaker construction, and “without terminals” terminals option. Business Impact: Flexible field wiring and terminal customization to fit panel layouts and busbars, optimizing space and labor. Application: Mine subpanels and modular switchgear assemblies.Feature: Certifications and mining focus (UL Listed, IEC Rated, CSA Certified, Mining class). Business Impact: Ensures compliance with industry standards, boosting supplier confidence, and facilitating regulatory approvals. Application: Underground and surface mining electrical protection implementations.
