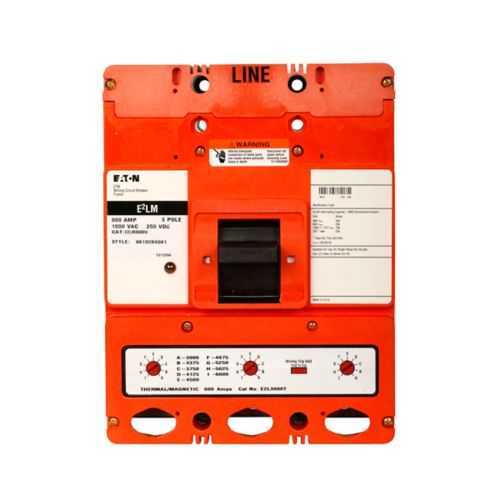

Eaton E2LM3450W Mining MCCB - L-frame, 450 A, 1000Y/577 Vac
Part Number: E2LM3450W
Quick Summary
Eaton E2LM3450W mining complete molded case circuit breaker is designed to protect high-current mining circuits. Engineers in harsh mining environments need reliable protection that minimizes unplanned downtime and simplifies maintenance. Certification visibility is available through the manufacturer for essential standards and can include SIL, CE, and IP ratings as required. With a 450 A rating, 1000Y/577 Vac, and 250 Vdc capability, this MCCB supports robust protection while enabling efficient procurement and maintenance planning. The unit's rugged L-frame, three-pole configuration and trusted trip performance help manage lifecycle costs and project timelines in underground and surface mining installations.
Product Information
Extended Description
E2LM3450W Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Electr. LI trip, 2250-4500A, Three-pole, 450A, 1000Y/577 Vac, 250 Vdc
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3450W
UPC
782114208861
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
450 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2LM
Circuit breaker frame type
Complete breaker
Magnetic trip range
2250-4500A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
100 kAIC at 240 Vac 10 kAIC at 1000Y/577 Vac 35 kAIC at 600 Vac 65 kAIC at 480 Vac 42 kAIC at 250 Vdc
Number of poles
Three-pole
Trip rating
2250-4500 A
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers
Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers
Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers
Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: High-current protection capability at 450 A. Business Impact: Protects large mining feeders and motors, reducing risk of nuisance trips and downtime. Application: Ideal for three-pole mining MCCB installations in L-frame enclosures. Feature: Wide voltage compatibility of 1000Y/577 Vac and 250 Vdc. Business Impact: Enables unified protection for both high-voltage AC and DC control circuits, lowering spare parts and inventory costs. Application: Suitable for mine power distribution and control panels that service mixed-voltage loads. Feature: Trip Type T165 with magnetic range 2250–4500 A. Business Impact: Delivers precise, fast interrupt performance to minimize arc faults and collateral damage. Application: Critical feeders and motor circuits in mining operations require rapid response to fault conditions. Feature: Frame L, Class Mining, Three-pole configuration. Business Impact: Rugged construction supports underground environments while maintaining coordination with other protection devices. Application: Mounts seamlessly in standard mining switchgear and MCC panels. Feature: Terminals without terminals. Business Impact: Allows field-installation of compatible lugs or bus connections to match enclosure and busbar layouts. Application: Flexible integration with customer-specific terminal hardware. Feature: Warranty and service terms. Business Impact: Predictable lifecycle costs and support from Eaton reduce total cost of ownership. Application: Procurement planning and long-term maintenance budgeting. Industry-context note: This model aligns with typical mining MCCB practices, supporting compliance workflows and reliability expectations in underground and surface mining projects.
