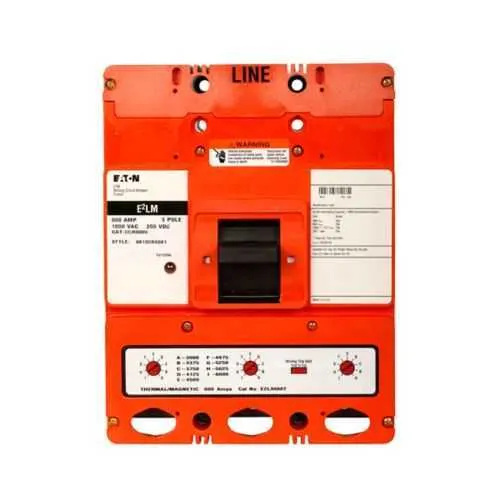

Eaton E2LM3500W Mining MCCB - L-Frame, 1000Y/577 Vac

Part Number: E2LM3500W
E2LM3500W
Manufacturer
Eaton
Part number
E2LM3500W
Category

Quick Summary

Eaton E2LM3500W is a mining complete molded case circuit breaker designed to protect large electrical systems in mining operations. Operators often face costly downtime and safety risks when protection devices trip unexpectedly under heavy loads. Certification details vary by region, but Eaton provides documentation on common requirements, including SIL, CE, and IP-related ratings, available on request. This rugged MCCB combines robust protection with fast fault isolation, helping you meet safety standards while reducing maintenance costs in harsh underground environments. For mining OEMs and maintenance teams, it also supports streamlined procurement and predictable performance in demanding conditions.

Product Information

Extended Description

E2LM3500W Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Electr. LI trip, 2500-5000A, Three-pole, 500A, 1000Y/577 Vac, 250 Vdc
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3500W
UPC
782114208878
Product Length/Depth
13.5 in
Product Height
8 in
Product Width
11 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
500 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2LM
Circuit breaker frame type
Complete breaker
Magnetic trip range
2500-5000A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
42 kAIC at 250 Vdc 65 kAIC at 480 Vac 100 kAIC at 240 Vac 10 kAIC at 1000Y/577 Vac 35 kAIC at 600 Vac
Number of poles
Three-pole
Trip rating
2500-5000 A
Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MSHA policy letter for suitability, safety and performance of circuit breakers Robinson Mine Case Study: Solutions for the mining industry Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: 500 A amperage rating with a three-pole, L-frame design and magnetic trip range of 2500-5000 A. Business Impact: Enables precise overload protection for high-demand mining equipment, minimizing nuisance trips and extending equipment life. Application: Suitable for mining conveyors, crushers, and drill rigs where large faults must be isolated quickly. Long-tail keywords integrated: mining MCCB protection, high-current molded case breaker, three-pole protection. Feature: Magnetic trip range and Trip Type T165 provide fast, selective tripping. Business Impact: Improves safety and reduces downstream damage from short circuits. Application: Ideal in switchgear and motor control centers in underground operations. Feature: 1000Y/577 Vac and 250 Vdc voltage ratings with 3-pole arrangement. Business Impact: Supports diverse DC and AC mining circuits, enabling cohesive power distribution. Application: Drive panels and distribution boards that require versatile voltage handling. Feature: L-frame, mining class design and 'without terminals' configuration. Business Impact: Simplifies installation with compatible accessories and customizable wiring; reduces field wiring time. Application: OEM panel builds and retrofit projects in mining equipment. Feature: Footprint, weight, and warranty details (13.5 in deep, 11 in wide, 8 in high; 15 lb; 1 year warranty from installation / 18 months from shipment). Business Impact: Facilitates manageable installation in space-constrained control panels and minimizes total cost of ownership. Application: Control rooms and mobile equipment in underground mining. Feature: Documentation and compliance support. Business Impact: Accelerates engineering approvals and regulatory readiness. Application: Projects requiring MSHA/CE documentation and safety certifications.

Get a Quick Quote for a Eaton E2LM3500W

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton E2LM3500W? Enquire Now

FAQs

Install the E2LM3500W as a three-pole, L-frame unit with the panel mounting compatible to Eaton’s mining MCCB standards. Because the product is listed as 'without terminals', plan wiring with appropriate lugs or accessory kits, ensure proper bus connections, and torque per the datasheet. Refer to the installation guidelines in Eaton's MCCB documentation for panel clearances and wiring practices to maximize protection and minimize downtime.
Key specs include a 500 A amperage rating, 3-pole configuration, and voltage ratings of 1000Y/577 Vac and 250 Vdc. Its magnetic trip range is 2500-5000 A, with a Trip Type of T165. Interrupt ratings vary by voltage level (e.g., up to 100 kAIC at 240 Vac and 42 kAIC at 250 Vdc). These specs support robust protection for mining equipment under heavy fault currents.
Yes. The E2LM3500W is designed for mining-specific protection, featuring a mining-class circuit breaker with a rugged L-frame and high interrupt capability. Its 1000Y/577 Vac and 250 Vdc ratings accommodate diverse power distribution needs in underground environments. For best results, pair it with compatible mining MCCB accessories and follow manufacturer installation guidelines.
Certification details are provided by the manufacturer, Eaton. Documentation for common mining and electrical safety standards is available upon request, including region-specific approvals and performance data. Contact Eaton to verify SIL, CE, IP-related documentation and to obtain the exact compliance packages required for your project.
The unit offers a 1-year warranty from installation or 18 months from shipment, whichever comes first, reducing risk for initial deployment. Its rugged mining-class design minimizes unplanned outages and supports longer intervals between maintenance. When integrated into properly engineered power distribution, it lowers downtime costs and improves overall equipment reliability in harsh mining environments.
