Eaton E2LM3600A06 E2 mining complete MCCB - 35 kAIC

Part Number: E2LM3600A06
E2LM3600A06
Manufacturer
Eaton
Part number
E2LM3600A06
Category

Quick Summary

The Eaton E2LM3600A06 mining complete molded case circuit breaker protects critical electrical systems in mining facilities. This rugged MCCB is designed to endure harsh underground environments while delivering precise overcurrent protection. Note: Certifications vary by region; typical mining MCCBs address CE compliance, IP ratings, and SIL capability—verify exact levels with Eaton’s spec sheets. With an interchangeable thermal-magnetic trip and a three-pole L-frame, installation and maintenance are streamlined in conduit-heavy mine rooms, while the 600 A rating and 1000Y/577 Vac plus 250 Vdc capability support scalable protection. In practice, compatible line and load terminals and a rear 1A-1B auxiliary switch reduce wiring steps and spare-part complexity, lowering total cost of ownership in mining operations.

Product Information

Extended Description

E2LM3600A06 Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Interchangeable thermal-magnetic trip, 3000-6000A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, Line and Load, Mining, 1A-1B rear w/ right pigtail
Product Name

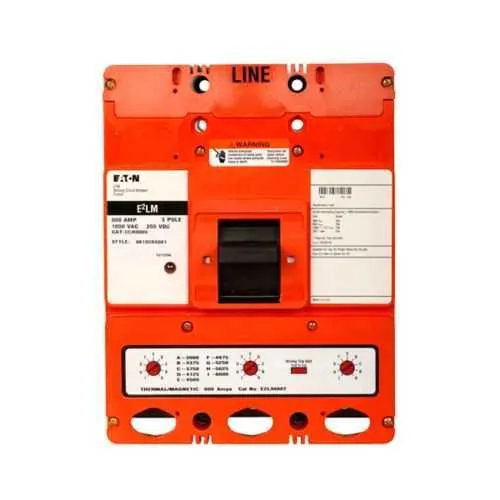

Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3600A06
UPC
782116035748
Product Length/Depth
10.75 in
Product Height
8.25 in
Product Width
4.06 in
Product Weight
12.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T207
Circuit breaker type
E2LM
Circuit breaker frame type
Complete breaker
Auxiliary switch
1A-1B rear with right pigtail
Terminals
Line and Load
Frame
L
Class
Mining
Interrupt rating
35 kAIC at 600 Vac 42 kAIC at 250 Vdc 100 kAIC at 240 Vac 65 kAIC at 480 Vac 10 kAIC at 1000Y/577 Vac
Number of poles
Three-pole
Trip rating
3000-6000 A
