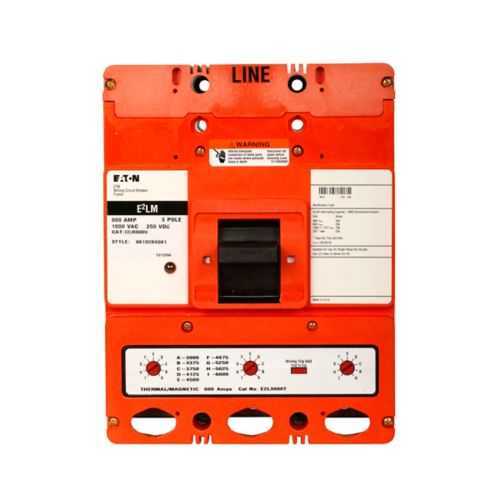

Eaton E2LM3600F Mining MCCB Frame - 1000Y/577 Vac
Part Number: E2LM3600F
Quick Summary
Eaton E2LM3600F mining MCCB frame provides rugged overcurrent protection for underground mining installations. Operators often struggle with downtime when trip units are not configured for high-current events. Compliances and Certifications are handled by the manufacturer, with available MSHA policy letter and mining-specific certification guidance to support underground safety. This frame-only, L-frame component offers reliable switching performance for heavy mining loads, while enabling seamless integration with compatible trip units and safety systems to improve uptime and maintain regulatory alignment.
Product Information
Extended Description
E2LM3600F Eaton: Eaton E2 mining molded case circuit breaker frame, L-frame, E2LM, Interchangeable thermal-magnetic trip, 3000-6000A, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc
Product Name
Eaton E2 mining molded case circuit breaker frame
Catalog Number
E2LM3600F
UPC
782114209035
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty frame only
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T207
Circuit breaker type
E2LM
Circuit breaker frame type
Frame only
Magnetic trip range
3000-6000A
Frame
L
Class
Mining
Interrupt rating
65 kAIC at 480 Vac 100 kAIC at 240 Vac 35 kAIC at 600 Vac 42 kAIC at 250 Vdc 10 kAIC at 1000Y/577 Vac
Number of poles
Three-pole
Trip rating
3000-6000 A
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Selling Policy 25-000 - Distribution and Control Products and Services
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Interchangeable thermal-magnetic trip provides flexible protection and reduces maintenance cycles, cutting downtime and service costs in mining installations. Business impact: faster fault isolation and predictable protective coordination; Application: pair with Digitrip 310+ electronic trip units for enhanced sensing in extreme underground conditions. The 600 A amperage rating with a three-pole design supports high-current mining feeders, enabling safe, scalable protection as equipment demand grows. Business impact: load-ready protection with fewer spare-part changes; Application: ideal for modular underground mining panels and service centers requiring robust protection.
Get a Quick Quote for a Eaton E2LM3600F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton E2LM3600F?
Enquire Now
FAQs
E2LM3600F is a frame-only, L-frame unit designed for three-pole mining panels. It fits standard panel cutouts and pairs with compatible accessory trip units. Dimensionally, it measures 8.25 in in each axis and weighs 15 lb, aiding installation planning. Ensure proper busbar connections and mounting hardware match your enclosure specifications for reliable, code-compliant protection.
Key specs include a 600 A amperage rating, voltage rating of 1000Y/577 Vac and 250 Vdc, and a trip type of T207. The magnetic trip range is 3000–6000 A, with interrupt ratings up to 100 kAIC at certain voltages. The frame is three-pole and designated as a mining class device, designed for rugged underground service.
Yes, the E2LM3600F is built for mining environments as a frame-only MCCB with robust rating and magnetic trip capabilities. Compliance specifics and certifications are managed by the manufacturer, and Eaton provides MSHA policy letters and mining-specific guidance to support safety, reliability, and regulatory alignment in underground operations.
The product follows Eaton’s Selling Policy 25-000, offering a one-year limited warranty from installation or eighteen months from shipment, whichever occurs first. This protects against manufacturing defects and supports a maintenance plan for mining operations seeking predictable total cost of ownership.
