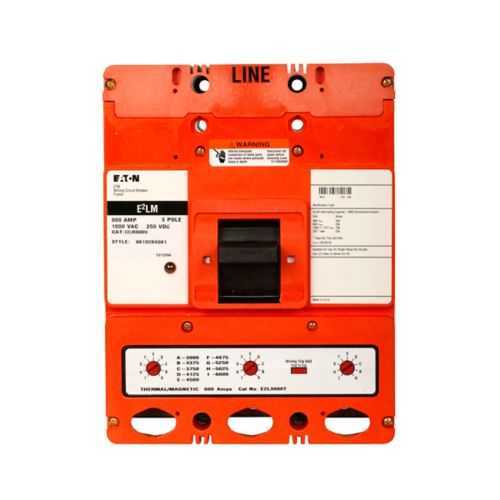

Eaton E2LM3600KD09 Mining MCCB - 1000Y/577 Vac

Feature → Interchangeable thermal-magnetic trip (Trip Type T207) → Business Impact → Fast, selective protection reduces nuisance trips and protects downstream equipment; Application → Underground and open-pit mining electrical feeders benefit from dependable trip characteristics and easy field retrofit. Feature → Three-pole, 600 A ampacity → Business Impact → Handles high fault currents typical of mining feeders, enabling centralized protection without over-sizing assemblies; Application → Main distribution panels and sub-feed circuits in mining installations. Feature → Voltage ratings 1000Y/577 Vac and 250 Vdc → Business Impact → Supports mixed AC and DC protection in mining substations and equipment bays; Application → Interfaces with 1000Y/577 Vac mining circuits and DC control systems. Feature → Frame L, Line/load end caps, Metric mounting hardware → Business Impact → Easy installation with standardized end caps and metric hardware reduces field complexity and retrofit time; Application → Retrofit projects and new mine installations using KPEKM4-end cap configurations. Feature → High interrupt ratings (42 kAIC at 250 Vdc; 65 kAIC at 480 Vac; 100 kAIC at 240 Vac; 10 kAIC at 1000Y/577 Vac; 35 kAIC at 600 Vac) → Business Impact → Robust fault current withstand improves safety margins and reduces downstream damage in high-short-circuit scenarios; Application → Mines with high fault current potential and variable supply conditions. Feature → Mining class (Three-pole, L-frame) with documented safety literature and MSHA guidance → Business Impact → Enhanced safety compliance and operator protection; Application → Underground and surface mining electrical systems requiring mining-grade MCCBs. Feature → Warranty and support (one year from installation or 18 months from shipment) → Business Impact → Clear coverage reduces risk and supports maintenance budgeting; Application → Commissioning and after-sales planning for mining projects.
