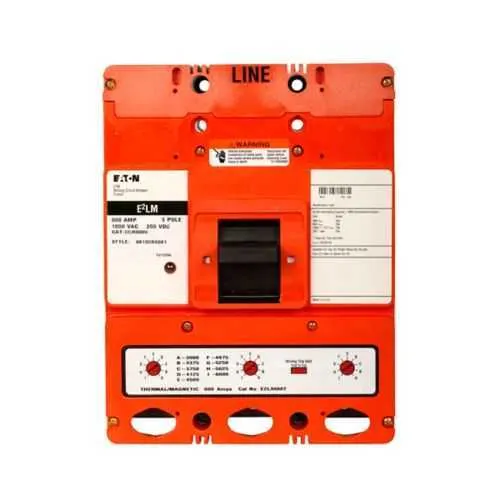

Eaton E2LM3600KD18 Mining MCCB - 600A, 1000Y/577 Vac, 3-Pole

Part Number: E2LM3600KD18
E2LM3600KD18
Manufacturer
Eaton
Part number
E2LM3600KD18
Category

Quick Summary

The Eaton E2LM3600KD18 mining MCCB is a complete molded case circuit breaker designed for underground mining protection and control. In harsh mining environments, ensuring reliable trip performance under heavy transients and variable loads is a chronic challenge. This family references MSHA safety guidance and Eaton's mining documentation to guide compliant installations, with datasheets and service literature supporting field work. By combining a rugged L-frame, three-pole configuration, and a dual voltage rating, it helps you meet uptime targets while simplifying procurement. Whether upgrading existing infrastructure or specifying spares, this MCCB aligns with common mining needs, supports metric mounting, and end-cap configurations for line and load connections.

Product Information

Extended Description

E2LM3600KD18 Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Molded case switch, Interchangeable thermal-magnetic trip, 3000-6000A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, Line/load end caps, Metric, KPEKM5, KPEKM5
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3600KD18
UPC
786685009704
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T207
Circuit breaker type
E2LM
Circuit breaker frame type
Molded case switch
Terminals
Line and load end caps
Frame
L
Class
Mining
Line
KPEKM5
Mounting hardware
Metric
Prod load
KPEKM5
Interrupt rating
42 kAIC at 250 Vdc 35 kAIC at 600 Vac 65 kAIC at 480 Vac 100 kAIC at 240 Vac 10 kAIC at 1000Y/577 Vac
Number of poles
Three-pole
Trip rating
3000-6000 A
Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MSHA policy letter for suitability, safety and performance of circuit breakers Robinson Mine Case Study: Solutions for the mining industry Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: Interchangeable thermal-magnetic trip (T207) with a 3000-6000 A trip rating. Business Impact: Delivers precise protection for overloads and short circuits, reducing nuisance trips and improving selectivity across feeders. Application: Mining distribution panels and motor controls where fault isolation is critical. The combination supports faster fault diagnosis and lower downtime in rugged underground setups. Feature: Three-pole, L-frame molded case switch. Business Impact: Simplifies three-phase protection with a compact footprint, easing panel layout and wiring consistency. Application: Heavy-duty mining feeders and compact MCC installations where space is at a premium. Feature: Amperage rating of 600 A with voltage ratings of 1000Y/577 Vac and 250 Vdc. Business Impact: Enables direct protection of high-current AC networks and DC interfaces common in mining equipment, reducing component count and integration risk. Application: Main distribution, drive circuits, and DC link protection in underground equipment. Feature: High interrupt ratings up to 42 kAIC at 250 Vdc and up to 100 kAIC at 240 Vac. Business Impact: Maximizes fault clearance capability, improving system safety and reducing arc-flash exposure during faults. Application: Substation and switchgear interfaces where large fault currents can occur. Feature: Line/load end caps and metric mounting hardware. Business Impact: Facilitates rapid, secure field installation with compatibility across Eaton accessories and documented mounting standards. Application: Retrofit projects and new builds requiring reliable mechanical fit and easy maintenance. Feature: Engineering documentation and mining-focused literature. Business Impact: Streamlines approvals, procurement, and commissioning with readily accessible datasheets, service guides, and MSHA references. Application: Engineering reviews, audits, and safety case development. Feature: Warranty and service terms (Eaton Selling Policy 25-000). Business Impact: Reduces total cost of ownership with defined coverage and predictable maintenance planning. Application: Asset management programs and long-term mining operations planning.

Get a Quick Quote for a Eaton E2LM3600KD18

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton E2LM3600KD18? Enquire Now

FAQs

The E2LM3600KD18 is a three-pole, L-frame MCCB with line/load end caps and metric mounting hardware, designed for mining distributions and motor control applications. It fits standard mining panels and integrates with Eaton accessories to simplify retrofits and new installations.
Key specs include a 600 A amperage rating, voltage ratings of 1000Y/577 Vac and 250 Vdc, a T207 trip type, and a three-pole configuration. Interrupt ratings reach up to 42 kAIC at 250 Vdc and up to 100 kAIC at 240 Vac, supporting robust fault handling.
Yes. The product is specifically positioned for mining use, with supporting MSHA guidance and mining-focused literature available. For formal certification details, refer to Eaton's mining MCCB documentation and manufacturer advisories.
Warranty is Eaton Selling Policy 25-000, offering one year from installation or eighteen months from shipment, whichever comes first. This supports asset management and helps structure maintenance and replacement cycles in mining operations.
Official Eaton resources include brochures, datasheets, and mining-specific guides such as the E2 Series mining MCCB literature, service center documents, and MSHA guidance letters available from Eaton’s site and product pages.
