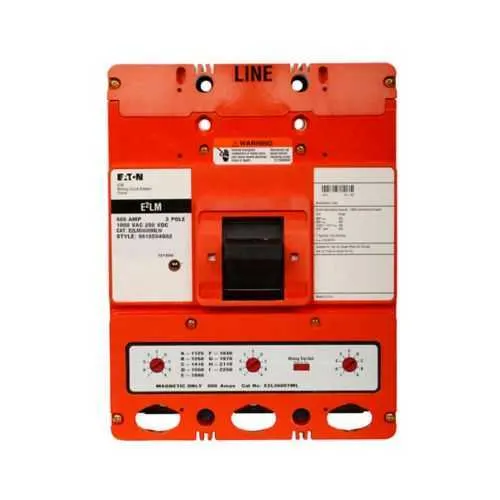

Eaton E2LM3600MLW Mining MCCB - 1125-2250A Magnetic Trip

The E2LM3600MLW uses a rugged L-frame three-pole configuration that provides balanced protection across all phases, simplifying panel design and installation while improving system reliability in demanding mining environments. This feature translates to a tangible business impact: fewer nuisance trips and reduced maintenance windows, enabling more consistent production uptime in conveyors and motor feeders. The magnetic trip range of 1125-2250 A gives engineers the ability to coordinate protection with large-motor loads and inrush conditions common in mining applications, reducing the risk of unnecessary shutdowns and protecting expensive equipment. In addition, the 600 A amperage rating paired with 1000Y/577 Vac and 250 Vdc capability supports both high-power AC systems and DC control circuits, streamlining hardware footprints and reducing procurement complexity. The unit ships without terminals, offering flexibility to align with your existing terminal strategy and field wiring harnesses, which accelerates installation and minimizes custom fabrication. With a compact 8.25 in length, height, and width and a 20 lb weight, this breaker is well-suited for confined underground spaces and rugged surface facilities. Comprehensive Eaton documentation—brochures, datasheets, and MSHA-focused safety letters—facilitates compliance planning, maintenance scheduling, and lifecycle ROI analysis. The E2LM3600MLW is designed for mining-specific protection, enabling faster fault diagnosis and safer shutdowns during routine maintenance or emergency events. Finally, the product’s interchangeability and service ecosystem help reduce total cost of ownership when upgrading legacy MCCBs in aging mining infrastructure.
