Eaton E2LM3600MLWA03S29 MCCB - 1125-2250A Magnetic Trip
Part Number: E2LM3600MLWA03S29
Quick Summary
Eaton E2LM3600MLWA03S29 MCCB provides robust overcurrent protection for mining equipment. In harsh mining environments, installers struggle with unreliable trips and difficult integration of auxiliary switches and shunt-trip options. Compliances and certifications vary by region; confirm SIL, CE, and IP ratings with Eaton to ensure regulatory alignment. This model delivers a 600 A amperage rating with a 1125-2250 A magnetic trip, a 1000V class rating, and an auxiliary switch option with leads and GF or shunt trip. The combination of rugged performance and flexible protection reduces downtime and simplifies maintenance, supporting safer, compliant, and more productive mining operations.
Product Information
Extended Description
E2LM3600MLWA03S29 Eaton: E2LM 1000V MINING BREAKER, 600 AMP, 1125-2250 AMP MAG ONLY TRIP, AUX SWITCH W/ LEADS TO OPP SIDE AND110-127 VAC GF OR 208-240 VAC SHUNT TRIP
Product Name

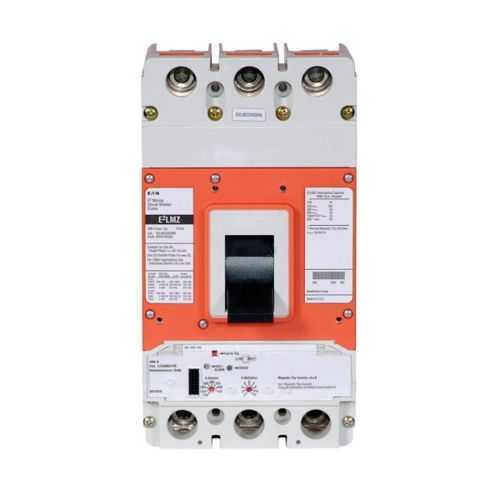

Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3600MLWA03S29
UPC
786689599027
Product Length/Depth
10.75 in
Product Height
8.25 in
Product Width
4.06 in
Product Weight
20 lb
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
E2 mining
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T205
Circuit breaker type
E2LM
Circuit breaker frame type
Complete breaker
Magnetic trip range
1125-2250A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
42 kAIC at 250 Vdc 35 kAIC at 600 Vac 100 kAIC at 240 Vac 65 kAIC at 480 Vac 10 kAIC at 1000Y/577 Vac
Number of poles
Three-pole
Trip rating
1125-2250 A
Robinson Mine Case Study: Solutions for the mining industry
Eaton Specification Sheet - E2LM3600MLWA03S29
Feature → The E2LM3600MLWA03S29 offers a 600 A amperage rating with a 1125-2250 A magnetic trip. Business Impact → This provides precise fault current protection for heavy mining loads, minimizing arc flash risk and equipment damage, which translates to lower maintenance costs and longer equipment life. Application → Suitable for three-pole mining circuits in 1000Y/577 VAC systems and 250 VDC control circuits in shaft, conveyance, and processing equipment. Feature → The unit is rated for 1000Y/577 Vac, 250 Vdc with a T205 trip profile. Business Impact → Supports versatile operation across high-voltage mining feeds and DC control networks, ensuring fast isolation during faults. Application → Ideal for mining subpanels and motor control centers handling mixed AC/DC loads. Feature → Magnetic trip range 1125-2250A and three-pole frame L. Business Impact → Enables on-site customization of trip settings to match circuit demand, reducing nuisance trips and improving system availability. Application → Essential for concurrent protection of multi-motor mining drives and conveyor systems. Feature → Auxiliary switch with leads to opposite side and selectable GF 110-127 VAC or 208-240 VAC shunt trip. Business Impact → Enables remote shutdown and enhanced safety interlock schemes, simplifying control integration and compliance. Application → Great fit for remote tripping in hazardous zones or centralized safety interlocks. Feature → Without terminals and a complete breaker frame designed for E2 mining class. Business Impact → Simplifies installation in modular panels and OEM equipment, reducing field wiring and commissioning time. Application → Beneficial for mine site installs where panel space is constrained and quick replacement is valued. Feature → Mining-specific class with robust interrupt ratings across multiple voltages. Business Impact → Delivers reliable fault clearing under demanding operating conditions, supporting uptime and regulatory compliance. Application → Appropriate for loaders, crushers, and extractive processing equipment in 1000 VAC mining environments.
