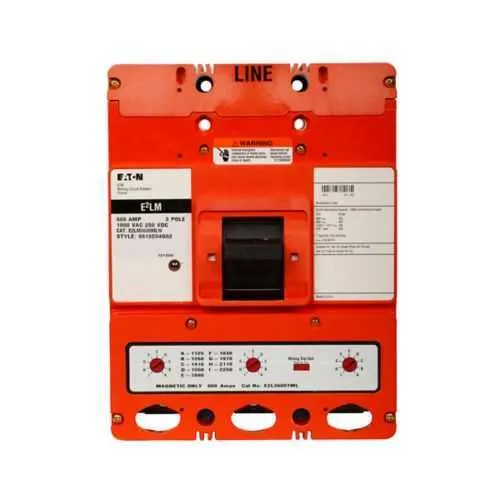

Eaton E2LM3600MNW Mining MCCB - T205 Trip Rating

A three-pole L-frame complete breaker is configured for mining duty and offers a rugged protection platform. This design reduces unplanned outages by withstanding harsh underground environments, enabling faster field service and simpler stocking of spare units. It integrates seamlessly into existing mining protection schemes and panel layouts, supporting reliable coordination with upstream feeders and downstream loads. The magnetic trip option with a range of 1500-3000 A provides precise overcurrent protection, improving selectivity and minimizing unnecessary trips during high-load conditions common in ore processing and conveyance systems. The voltage rating of 1000Y/577 Vac and 250 Vdc supports mixed AC/DC systems found in mining environments, enabling cross-plant compatibility and reducing the need for multiple breakers. An interrupt rating up to 100 kAIC enhances fault tolerance, protecting motors and feeders from high short-circuit currents. The terminalless design simplifies mounting and wiring, speeding installation and reducing field wiring complexity, while the warranty (one year from installation or eighteen months from shipment) offers reassurance for uptime-critical operations. Compatibility with mining panels and Eaton’s protective ecosystem supports streamlined procurement, easier maintenance planning, and improved lifecycle cost management for large fleets.
