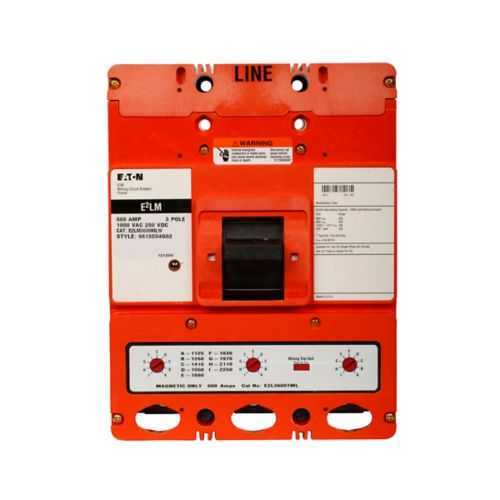

Eaton E2LM3600MXW Mining MCCB - 1000Y/577 Vac
Part Number: E2LM3600MXW
Quick Summary
Eaton E2LM3600MXW mining complete molded case circuit breaker protects mining electrical systems with reliable overcurrent protection. In demanding mining operations, unexpected trips disrupt productivity and safety, making rugged protection and fast maintenance essential. Certifications for this model are not listed by the manufacturer; guidance is available through MSHA policy letters for mining safety and performance, plus Eaton’s mining literature that includes trip unit comparisons to inform compliance decisions. This three-pole, L-frame mining MCCB with an interchangeable magnetic trip helps reduce downtime, supports high-current applications, and aligns with industry best practices for underground and surface mining installations. Designed for rugged environments, it integrates with standard Eaton accessories to streamline installation and service.
Product Information
Extended Description
E2LM3600MXW Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LM, Complete breaker, Interchangeable magnetic only trip, 2000-4000A trip rating, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, Without terminals, Mining
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LM3600MXW
UPC
782114209141
Product Length/Depth
4.06 in
Product Height
10.75 in
Product Width
8.25 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T205
Circuit breaker type
E2LM
Circuit breaker frame type
Complete breaker
Magnetic trip range
2000-4000A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
35 kAIC at 600 Vac 10 kAIC at 1000Y/577 Vac 100 kAIC at 240 Vac 65 kAIC at 480 Vac 42 kAIC at 250 Vdc
Number of poles
Three-pole
Trip rating
2000-4000 A
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Selling Policy 25-000 - Distribution and Control Products and Services
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: Three-pole L-frame complete breaker with interchangeable magnetic trip. Business impact: Simplifies integration into mining panels while enabling fast adaptation to changing fault currents. Application: Ideal for rugged underground or surface mining distribution networks needing reliable, modular protection. Feature: Magnetic trip range of 2000–4000 A and trip type T205. Business impact: Scales protections for high-startup and fault currents, reducing nuisance trips and equipment damage. Application: Feeder and main-distribution circuits in high-demand mining installations. Feature: Voltage rating of 1000Y/577 Vac and 250 Vdc with multiple interrupt ratings. Business impact: Supports diverse AC and DC bus configurations while maintaining safety margins. Application: Heavy-duty mining process controls and standby systems. Feature: Frame L, three-pole construction, and complete breaker without terminals. Business impact: Enables compact installation geometry and customization with field terminal options. Application: Panel builders can tailor wiring to site layouts without sacrificing protection reliability. Feature: Weight of 20 lb and compact dimensions (4.06 in x 8.25 in x 10.75 in). Business impact: Easier handling and faster installation in constrained underground enclosures. Application: Retrofit and new installs where space is at a premium. Feature: Class Mining with a 35 kAIC interrupt rating at 600 Vac and MSHA-oriented service literature. Business impact: Improves safety margins in harsh mining environments and supports regulatory alignment. Application: High-risk mining plant sections requiring robust arc-fault protection. Feature: Warranty per Eaton policy 25-000 (1 year from install or 18 months from shipment). Business impact: Reduced ownership cost and clearer maintenance planning. Application: Procurement-ready for lifecycle planning and service budgeting. Keyword integration: mining MCCB, E2LM3600MXW, interchangeable magnetic trip, L-frame, three-pole, 600 A, mining protection, Digitrip compatibility.
Get a Quick Quote for a Eaton E2LM3600MXW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton E2LM3600MXW?
Enquire Now
FAQs
The E2LM3600MXW is a three-pole, L-frame complete breaker sold without terminals. Install with compatible Eaton terminal kits and follow the device’s mounting guidelines to preserve protection integrity and ensure a clean, serviceable mining distribution panel.
This unit features an interchangeable magnetic trip with a 2000–4000 A range and a T205 trip type. For high-current mining feeders, align the magnetic trip setting to anticipated fault currents and consult Eaton’s Digitrip comparison materials to validate coordination with upstream protection.
Yes. The product is categorized in the Mining class with high interrupt ratings and a design intent tailored to mining environments. For compliance documentation, refer to MSHA policy letters and Eaton mining MCCB literature; verify site-specific requirements prior to deployment.
Certifications in the data are listed as Contact Manufacturer. For formal guidance, review MSHA policy letters on circuit breakers used in mining, and consult Eaton’s technical datasheets and safety literature to confirm any CE/UL or regional compliance applicable to your project.
The unit’s rugged mining design, interchangeable magnetic trip, and field-customizable terminals support longer service intervals and reduced downtime. The 1-year or 18-month warranty helps manage lifecycle costs, while industry literature aids in selecting coordination strategies to optimize protection and minimize unplanned outages.
