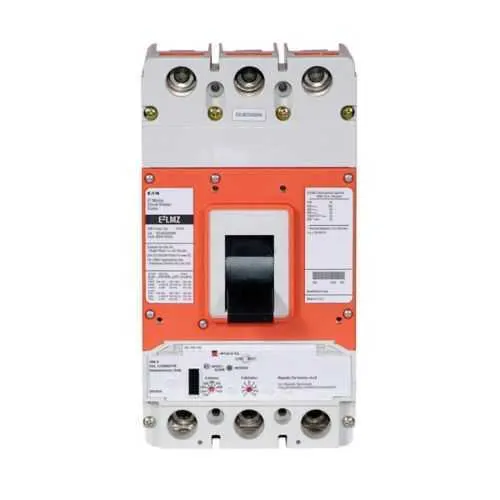

Eaton E2 mining complete MCCB - E2LME340031W

Part Number: E2LME340031W
E2LME340031W
Manufacturer
Eaton
Part number
E2LME340031W
Category

Quick Summary

The Eaton E2 mining complete molded case circuit breaker protects mining power systems with reliable overcurrent protection in harsh environments. Maintenance downtime and uncertain fault currents in remote mines complicate commissioning and increase risk. While exact regional certifications vary, key safety attributes and compliance are documented by Eaton, with certifications such as SIL, CE, and IP ratings available on request. This solution also leverages the E2 family ecosystem to deliver reliable protection with a clear maintenance path, helping customers reduce downtime and extend asset life. For mining applications, the combination of rugged protection and scalable accessories translates to lower total cost of ownership and faster project deployment.

Product Information

Extended Description

E2LME340031W Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LME, Electr. LI trip, 320-1920A, Three-pole, 160A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600 Vac, 10 kAIC at 1000Y/577 Vac, 42 kAIC at 250 Vdc
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LME340031W
UPC
786685376523
Product Length/Depth
4.06 in
Product Height
10.75 in
Product Width
8.25 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
160 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2LME
Circuit breaker frame type
Complete breaker
Magnetic trip range
320-1920A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
65 kAIC at 480 Vac 42 kAIC at 250 Vdc 35 kAIC at 600 Vac 100 kAIC at 240 Vac 10 kAIC at 1000Y/577 Vac
Number of poles
Three-pole
Trip rating
320-1920 A
