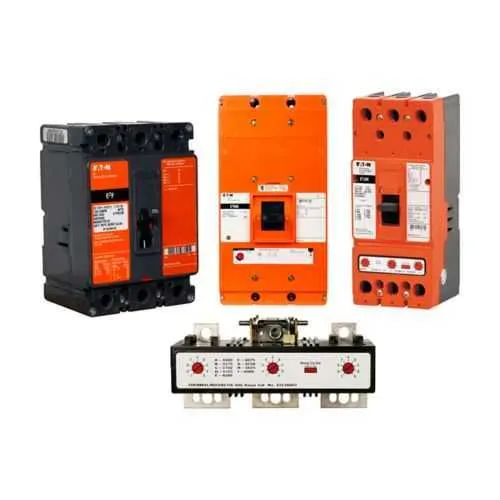

Eaton E2LW3450MLW Mining Complete MCCB - 10 kAIC
Part Number: E2LW3450MLW
Quick Summary
Eaton E2 mining complete molded case circuit breaker protects mining electrical systems by interrupting faults. In underground operations, unexpected trips and downtime can halt production and inflate maintenance costs. UL Listed and CSA Certified markings support safety compliance and audit readiness for regulated mining environments. This three-pole L-frame device is rated at 450 A and 1200 Vac with a 10 kAIC interrupt rating, engineered for rugged service. Its interchangeable magnetic trip range of 1125–2250 A enables scalable protection for evolving mine circuits. The terminalless design simplifies installation and reduces wiring complexity, while compatibility with Eaton E2 accessories streamlines field integration. Warranty support and documented certifications further minimize risk across the project lifecycle.
Product Information
Extended Description
E2LW3450MLW Eaton: Eaton E2 mining complete molded case circuit breaker, L-frame, E2LW, Complete breaker, Interchangeable magnetic only trip type, 1125-2250A trip rating, Three-pole, 450A, 1200 Vac, 10 kAIC at 1200 Vac, Without terminals, Mining
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2LW3450MLW
UPC
786685887036
Product Length/Depth
13 in
Product Height
7 in
Product Width
10 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Amperage Rating
450 A
Voltage rating
1200 Vac
Trip Type
T205
Circuit breaker type
E2LW
Circuit breaker frame type
Complete breaker
Magnetic trip range
1125-2250A
Terminals
Without terminals
Frame
L
Class
Mining
Interrupt rating
10 kAIC at 1200 Vac
Number of poles
Three-pole
Trip rating
1125-2250 A
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
High current protection is delivered by a 450 A rating, 1200 Vac capability, and a 10 kAIC interrupt rating. This combination translates to faster fault clearance and reduced fault energy, lowering arc flash exposure and equipment damage. This is ideal for mining feeder circuits and three-phase motor feeds in underground installations. Interchangeable magnetic trip lets you tailor protection without replacing hardware. By covering a 1125-2250 A magnetic trip range, you can adapt to changing loads or circuit expansions, minimizing downtime and parts inventory. Best applied to evolving mining feeders and main branches. Three-pole L-frame design provides balanced protection across all phases and simplifies coordination with upstream breakers. Terminalless design reduces wiring steps and field assembly time, cutting commissioning costs. UL Listed and CSA Certified assurances support regulatory compliance and supplier audits, protecting uptime and contract obligations. Compatibility with E2 accessories and mining catalogs ensures easy integration with existing switchgear, service centers, and preventative maintenance plans.
Get a Quick Quote for a Eaton E2LW3450MLW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton E2LW3450MLW?
Enquire Now
FAQs
The E2LW3450MLW is a three-pole, L-frame MCCB designed for simple field installation. It ships without terminals, so install as part of a factory- or field-assembled breaker assembly that matches Eaton E2 mining accessories. Verify 1200 Vac system voltage, ensure correct busbar and mounting dimensions, and confirm alignment with upstream protective devices to maintain proper coordination.
Key ratings include 450 A amperage, 1200 Vac voltage rating, 10 kAIC interrupt rating at 1200 Vac, and a magnetic trip range of 1125–2250 A. It is a three-pole, L-frame complete breaker suitable for mining service and designed for reliable operation in harsh environments.
Yes. The three-pole design, 450 A rating, 1200 Vac capability, and 10 kAIC interrupt rating make the E2LW3450MLW well-suited for mining feeders and large motors common in underground extraction and processing facilities.
The unit is UL Listed and CSA Certified, delivering recognized safety assurances and streamlined regulatory compliance for mining projects and safety audits.
With a terminalless installation design, compatible Eaton E2 accessories, and a scalable magnetic trip range, field wiring is simplified and future upgrades are easier. This reduces commissioning time, minimizes spare parts inventory, and lowers total installed cost while improving uptime in mining operations.
