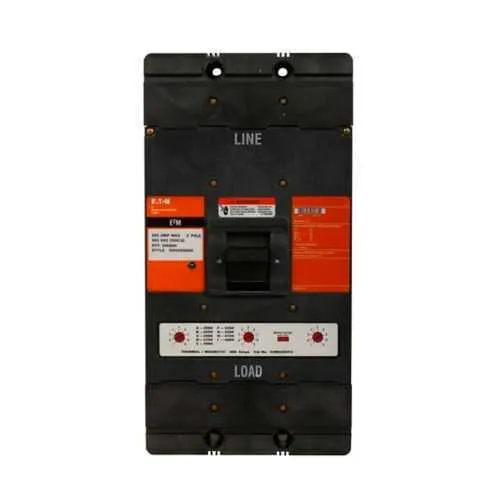

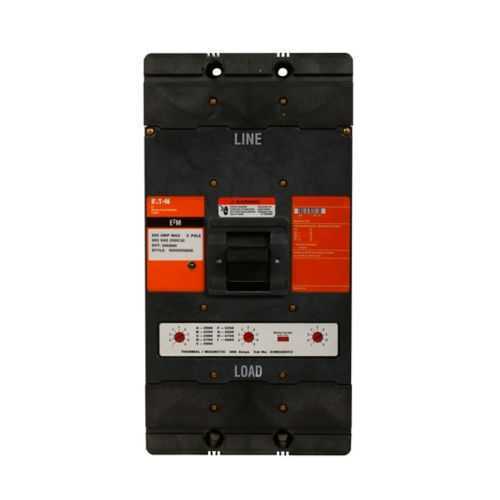

Eaton E2M3600TN Mining MCCB Trip Unit - 65 kAIC

Part Number: E2M3600TN
E2M3600TN
Manufacturer
Eaton
Part number
E2M3600TN
Category

Quick Summary

The Eaton E2M3600TN mining molded case circuit breaker trip unit protects high-current mining feeders and service circuits with precision. This specialized trip unit addresses nuisance trips and coordination challenges common in underground and surface mining environments. Certified for CSA and UL, it aligns with rigorous safety and reliability standards, giving you confidence in critical operations. Built for mining applications, it also supports interchangeable thermal-magnetic trip options, simplifying maintenance and future upgrades while delivering measurable uptime improvements and cost efficiency for large-scale mining projects.

Product Information

Extended Description

E2M3600TN Eaton: Eaton E2 mining molded case circuit breaker trip unit, MDL-frame, E2M, Interchangeable thermal-magnetic trip, 1500-3000A, Three-pole, 600A, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 25 kAIC at 600 Vac, 22 kAIC at 250 Vdc, Mining
Product Name
Eaton E2 mining molded case circuit breaker trip unit
Catalog Number
E2M3600TN
UPC
786685217475
Product Length/Depth
4.06 in
Product Height
16 in
Product Width
8.25 in
Product Weight
3 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Type
Specialty trip unit only
Amperage Rating
600 A
Voltage rating
250 Vdc
Trip Type
T207
Circuit breaker type
E2M
Circuit breaker frame type
Trip unit
Magnetic trip range
1500-3000A
Frame
MDL
Class
Mining
Interrupt rating
22 kAIC at 250 Vdc 65 kAIC at 240 Vac 35 kAIC at 480 Vac 25 kAIC at 600 Vac
Number of poles
Three-pole
Trip rating
1500-3000 A
Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MSHA policy letter for suitability, safety and performance of circuit breakers Robinson Mine Case Study: Solutions for the mining industry Eaton Specification Sheet - E2M3600TN Eaton Specification Sheet - E2M3600TN Eaton Specification Sheet - E2M3600TN Eaton Specification Sheet - E2M3600TN Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: MDL-frame, three-pole design provides compact, standardized installation and straightforward wiring “from the factory” to support consistent trip coordination across mining switchgear. Business Impact: Reduces cabinet depth space, lowers installation time, and improves protection alignment with adjacent devices. Application: Ideal for mining MCCB enclosures where space is at a premium and reliability is non-negotiable. Feature: Interchangeable thermal-magnetic trip unit enables on-site accommodation of varying fault profiles without replacing the entire breaker. Business Impact: Cuts spares inventories and speeds maintenance cycles, lowering total cost of ownership. Application: Mines with evolving layouts or changing rock mass conditions can adapt protection settings quickly. Feature: High interrupt ratings (22 kAIC at 250 Vdc; 65 kAIC at 240 Vac; 35 kAIC at 480 Vac; 25 kAIC at 600 Vac) deliver robust fault clearance. Business Impact: Enhanced safety margins and reduced arc fault risk for critical mining feeders. Application: Large-draw mining circuits requiring strong fault current withstand. Feature: 600 A amperage rating at 250 Vdc supports high-load mining feeders with reliable performance. Business Impact: Enables fewer devices in parallel, simplifying protection schemes and improving system reliability. Application: DC-powered mining equipment feeds and battery-backed systems. Feature: CSA Certified and UL Listed certifications provide recognized compliance for mining installations. Business Impact: Streamlines procurement and audit readiness, supporting regulatory alignment. Application: Global mining operations requiring approved electrical protection equipment. Feature: Mining-class frame and specs (MDL frame, three-pole, trip range 1500-3000 A) offer installation compatibility with Eaton’s E2M family. Business Impact: Accelerates retrofit projects and ensures consistent device compatibility. Application: Large mining installations seeking scalable, known-good protection upgrades.

Get a Quick Quote for a Eaton E2M3600TN

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton E2M3600TN? Enquire Now

FAQs

Yes. The E2M3600TN is designed for MDL-frame, three-pole mining MCCBs and aligns with the E2M trip unit family. For installation, verify enclosure footprint, busbar spacing, and mounting provisions match the MDL frame, and ensure DC and AC ratings meet the circuit requirements. If upgrading from a non-interchangeable unit, plan for a compatible mounting kit and bus connections to minimize downtime.
Key specs include a 600 A amperage rating at 250 Vdc, a trip range of 1500-3000 A, 22 kAIC at 250 Vdc, and 65 kAIC at 240 Vac (with 35 kAIC at 480 Vac and 25 kAIC at 600 Vac). The unit uses an interchangeable thermal-magnetic trip and is MDL frame-based, with three poles. These ratings guide short-circuit tolerance, voltage compatibility, and protective coordination.
Yes, it is intended for mining applications and carries CSA Certified and UL Listed certifications, which are widely recognized for safety and compliance in hazardous environments. The unit’s mining-class design and protective features address challenging underground conditions, including arc flash safety and fault current management, while maintaining regulatory alignment for procurement and audits.
The interchangeable thermal-magnetic trip unit allows you to adapt protection settings without replacing the entire breaker, reducing spare-part inventory and downtime during protection upgrades or circuit changes. This capability is particularly valuable in mining operations where demand and fault profiles can evolve, enabling faster maintenance windows and continuous protection without major hardware changes.
The unit delivers robust fault current ratings, scalable trip ranges, and compatibility with the E2M family, translating to fewer nuisance trips and improved uptime for critical feeders. Combined with CSA UL certification and an interchangeable trip option, operators gain predictable protection, easier maintenance planning, and stronger regulatory compliance, contributing to lower operating costs and enhanced safety metrics over the asset life cycle.
