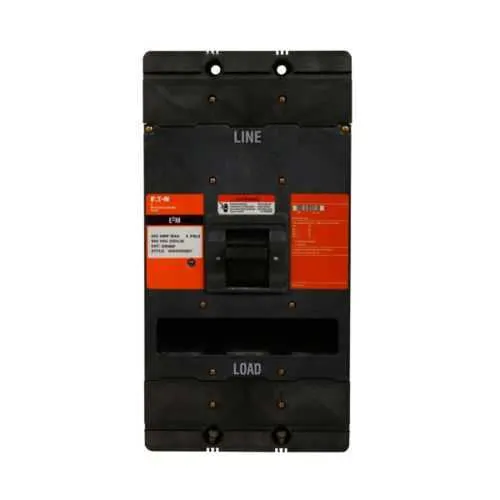

Eaton E2M3800F Mining MCCB - UL Listed

Interchangeable thermal-magnetic trip provides field-adjustable protection, reducing downtime and maintenance complexity by allowing quick trips to be matched to changing mine loads and fault conditions. This translates to safer, more reliable protection for long-wall conveyors and ore handling equipment, while lowering the risk of nuisance trips that disrupt production. The 800 A amperage rating at 250 Vdc supports heavy-duty DC mining power distribution, enabling compact, single-framed protection for large motors and drives. A broad magnetic trip range of 2000-4000 A and multiple interrupt ratings (65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 25 kAIC at 600 Vac, 22 kAIC at 250 Vdc) provide robust performance across varying load profiles and supply configurations, reducing the need for multiple devices. Three-pole design in the M-frame mining class ensures coordinated protection for 3-phase power systems, improving safety and fault-clearing reliability in demanding underground environments. Certifications including UL Listed and CSA Certified reassure regulatory compliance and supplier reliability, supporting audits and safety programs. Frame-only construction simplifies replacement in existing enclosures, enabling faster retrofits and lower install costs. The compact 4.06 in depth, 8.25 in height, and 8.25 in width help maintain enclosure density in space-constrained mining installations. Durable construction and a one-year warranty (or 18 months from shipment) minimize lifecycle costs and support predictable maintenance budgeting. Overall, the E2M3800F aligns with mining-specific protection strategies, delivering predictable protection, easier serviceability, and long-term cost savings for high-current, high-risk underground applications.
