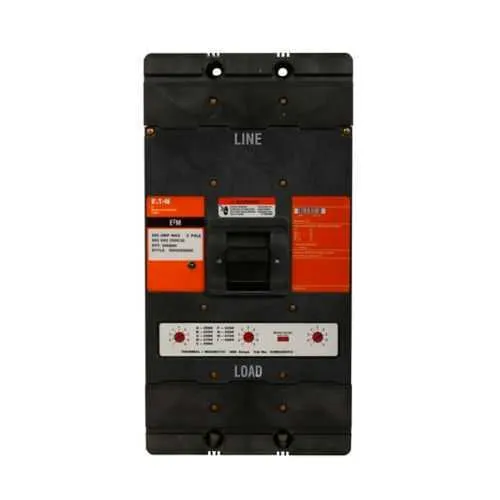

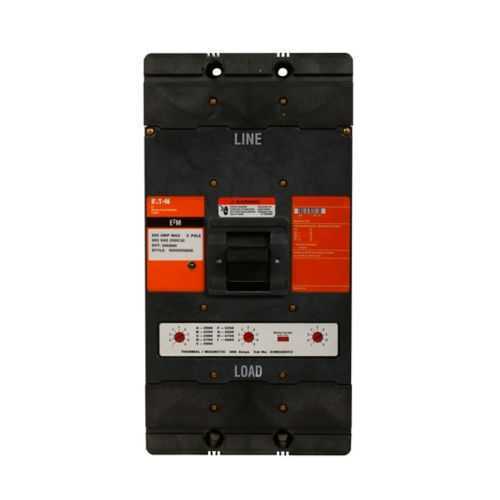

Eaton E2M3800MNW Mining Complete MCCB - 25 kAIC
Part Number: E2M3800MNW
Quick Summary
The Eaton E2M3800MNW is a mining complete molded case circuit breaker used to protect high-current mining equipment. It addresses downtime and nuisance trips by delivering precise magnetic protection for heavy loads encountered in underground and surface mining installations. Certified UL Listed and CSA Certified, this unit supports compliance in regulated environments and helps meet industry safety expectations. With an 800 A amperage rating at 250 Vdc and a magnetic trip range of 1500–3000 A, it guards feeders, motors, and transformers against short circuits. The MDL frame and three-pole configuration enable modular panel builds and straightforward field upgrades, delivering reliability, reduced maintenance, and total cost of ownership benefits for mining operations.
Product Information
Extended Description
E2M3800MNW Eaton: Eaton E2 mining complete molded case circuit breaker, MDL-frame, E2M, Complete breaker, Interchangeable magnetic only trip, 1500-3000A trip rating, Three-pole, 800A, 250 Vdc, Without terminals, Mining
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2M3800MNW
UPC
786685242644
Product Length/Depth
4.06 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Type
Specialty complete
Amperage Rating
800 A
Voltage rating
250 Vdc
Trip Type
T205
Circuit breaker type
E2M
Circuit breaker frame type
Complete breaker
Magnetic trip range
1500-3000A
Terminals
Without terminals
Frame
MDL
Class
Mining
Interrupt rating
25 kAIC at 600 Vac 22 kAIC at 250 Vdc 65 kAIC at 240 Vac 35 kAIC at 480 Vac
Number of poles
Three-pole
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: MDL frame, three-pole configuration, 800 A rating, 250 Vdc, and terminals without terminals. Business Impact: Simplifies integration into existing mining switchgear, reduces field modification time, and supports rugged, space-efficient installations. Application: Used in mining service panels where high-current protection is required without bulky terminal hardware. Feature: Magnetic trip range of 1500–3000 A with T205 trip type. Business Impact: Delivers fast, predictable isolation of fault currents to minimize equipment damage and arc exposure. Application: Protective coordination for feeders, motors, and transformers in harsh mining environments. Feature: Interchangeable magnetic trip capability. Business Impact: Allows on-site reconfiguration for evolving protection schemes without replacing the breaker. Application: Fleet maintenance and expansion programs in mining plants. Feature: 25 kAIC interrupt rating at 600 Vac (22 kAIC at 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac). Business Impact: Ensures robust fault handling across multi-voltage mining systems, reducing downtime risk. Application: Heavy-duty switching in variable voltage mining installations. Feature: Certifications UL Listed and CSA Certified. Business Impact: Provides regulatory confidence for safety compliance and procurement standardization. Application: Compliance-driven deployments across regulated mining sites. Feature: Warranty of one year from installation or eighteen months from shipment. Business Impact: Lower total cost of ownership through predictable support terms. Application: Procurement planning and component lifecycle management for mining projects.
Get a Quick Quote for a Eaton E2M3800MNW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton E2M3800MNW?
Enquire Now
FAQs
The E2M3800MNW uses an MDL frame with a three-pole design and is supplied without terminals, streamlining field mounting in standard mining MCCB panels. Ensure panel space accommodates an 8.25 inch width and 8.25 inch height device, and verify mounting aligns with common DIN rail or bolted interfaces used in mining equipment. The 800 A rating should be matched to your feeder and motor protection strategy, and accessory compatibility should be checked for future expansion.
Key specs include an 800 A amperage rating at 250 Vdc, three-pole configuration in the MDL frame, and a magnetic trip range of 1500–3000 A with T205 trip type. The interrupt ratings are 25 kAIC at 600 Vac, 22 kAIC at 250 Vdc, plus additional ratings at other voltages (65 kAIC at 240 Vac and 35 kAIC at 480 Vac). Certifications include UL Listed and CSA Certified.
Yes. It is designed for mining service circuits with a mining class rating, UL Listed and CSA Certified for regulatory compliance, and a rugged MDL frame suitable for underground and surface equipment. The three-pole construction, 800 A rating, and high interrupt ratings support reliable protection against short circuits in demanding mining installations.
This product carries UL Listed and CSA Certified marks, signaling compliance with recognized safety and performance standards. These certifications matter because they simplify procurement in regulated industries, ensure consistent safety performance, and support reliability in mission-critical mining applications.
The E2M3800MNW offers improved protection against costly equipment damage and downtime due to overcurrent events, thanks to precise magnetic trip coordination and high interrupt ratings. Its modular MDL frame, interchangeable trip options, and warranty terms help reduce maintenance costs and speed up panel upgrades, delivering measurable ROI through lower downtime and extended equipment life.
