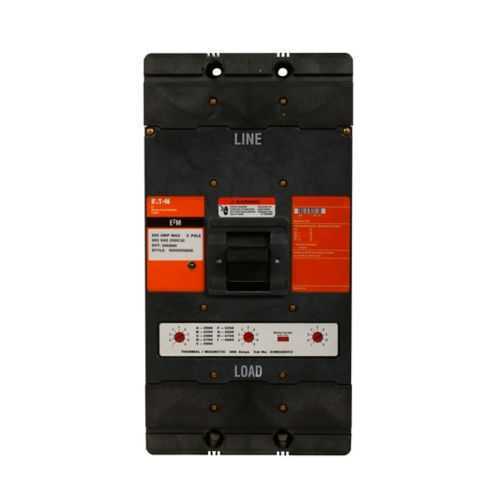

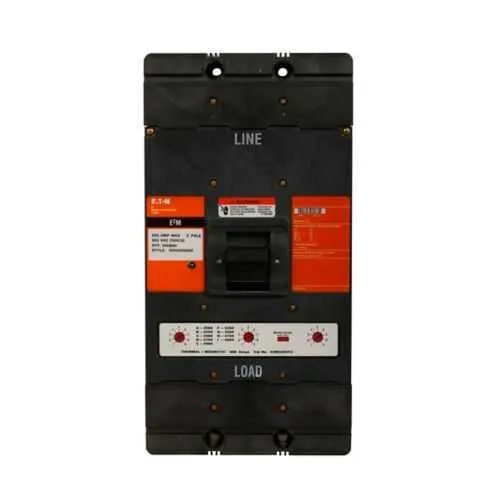

Eaton E2M3800MXW Mining MCCB - UL Listed CSA Certified

Feature: 800 A Amperage Rating at 250 Vdc provides a robust protection envelope for high-current mining feeders. Business Impact: Enables safe interruption of faults without nuisance trips that stall mining cycles, improving motor and conveyor uptime. Application: Ideal for underground mining service panels and heavy-load feeders where DC control is used. Feature: Three-pole M-frame design with a Complete breaker architecture. Business Impact: Ensures coordinated protection and predictable operation, simplifying panel design and maintenance. Application: Suited for three-phase mining feeders and service centers requiring reliable trip coordination. Feature: Interchangeable magnetic trip with a magnetic trip range of 2000–4000 A. Business Impact: Allows field tuning for selective protection and faster fault clearance, reducing exposure and downtime. Application: Effective in panels with varying fault currents in mining environments. Feature: High interrupt ratings across voltages (22 kAIC at 250 Vdc, 25 kAIC at 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac). Business Impact: Withstands high fault levels typical of mining installations, protecting equipment and enabling safe shutoffs. Application: Critical in surface and underground switchgear where fault current may spike. Feature: UL Listed and CSA Certified with a Mining class rating. Business Impact: Simplifies regulatory compliance and procurement approvals, lowering audit risk and accelerating project timelines. Application: Suitable for regulated mining projects and OEM integrations. Feature: Terminals Without terminals design and compatibility with the E2 family. Business Impact: Reduces shipping weight and supports flexible field wiring with compatible terminal kits. Installation Tip: Plan for an appropriate terminal kit and bus connection to ensure a seamless retrofit or new-build integration.
