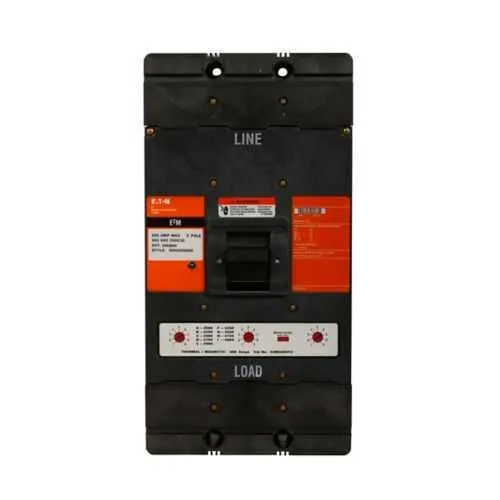

Eaton E2M3800TX Mining MCCB Trip Unit - UL Listed

Feature Interchangeable thermal-magnetic trip unit for E2 M-frame mining MCCBs → Business Impact Reduces field service time and stocking needs by allowing quick on-site trip unit changes, lowering downtime and maintenance costs. Application Mining service panels and underground equipment where space and accessibility challenge maintenance. Feature 800 A amperage rating and 250 Vdc capability → Business Impact Supports high-current load protection with clean, stable protection curves in mining conveyors, crushers, and hoists. Application Large-current mining installations requiring robust overcurrent protection. Feature Magnetic trip range 2000-4000 A and frame M with three poles → Business Impact Delivers scalable protection for medium-to-high fault currents while maintaining precise coordination with surrounding protection schemes. Application E2 M-frame installations in three-pole configurations for mining fleets. Feature Interrupt ratings up to 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 25 kAIC at 600 Vac; 22 kAIC at 250 Vdc → Business Impact Enhances safety margins and fault clearance capability, reducing arc-flash exposure and improving system reliability. Application Mining and surface facilities with mixed-voltage profiles. Feature Compliance with UL Listed and CSA Certified standards → Business Impact Supports regulatory acceptance and end-user audits, simplifying procurement and commissioning. Application Projects following mining safety and electrical protection codes. Feature Compact footprint and modal compatibility with E2 M-frame assemblies → Business Impact Eases retrofit and integration into existing switchgear footprints, minimizing rewiring and panel downtime. Application Retrofit projects and new mine electrical rooms where space is at a premium.
