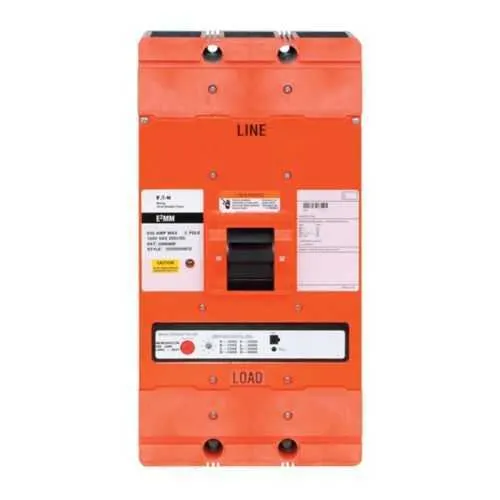

Eaton E2MM3800MXW Mining MCCB - 25 kAIC at 600V

Feature: The E2MM3800MXW delivers an 800 A rating with 25 kAIC interrupt capability at 600 V, ensuring rapid fault clearance for high-energy mining feeders and motors. Business impact: this level of protection minimizes arc flash risk, reduces equipment damage, and shortens downtime in ore-processing lines. Application: ideal for three-pole, M-frame mining service configurations where rugged reliability and fast response are non-negotiable. In practice, technicians appreciate the combination of rugged build and predictable response, which translates to lower maintenance costs over the equipment life. Feature: An interchangeable magnetic trip with a 2000-4000 A range provides flexibility to coordinate with upstream protections and adapt to motor inrush. Business impact: customers can tailor protection curves to heavy loads without swapping hardware, lowering lifecycle costs and improving selectivity. Application: mining crushers, conveyors, and ventilation systems benefit from start-up protection that avoids nuisance trips while maintaining safety margins. This design addresses common field challenges by enabling on-site trip setting adjustments without component replacement.Feature: A complete M-frame, three-pole breaker with terminals omitted simplifies installation, reduces wiring errors, and lowers field modification needs. Business impact: faster commissioning translates to shorter project schedules and lower labor costs in remote mining sites. Application: suitable for new builds and retrofit projects where space is constrained, with dimensions at 4.06 in depth, 16 in height, and 8.25 in width. Feature: Dual voltage capability – 1000Y/577 Vac and 250 Vdc – supports unified protection across mixed electrical architectures. Business impact: simplifies inventory, improves cross-system protection, and reduces the risk of misapplication. Application: can be integrated with mining control panels and DC drives, delivering consistent protection in challenging underground environments. Warranty and support: Eaton provides a one-year warranty from installation or eighteen months from shipment, whichever occurs first, backed by engineering and field-service resources. This reduces risk for maintenance planning and helps ensure long-term reliability in mining operations.
