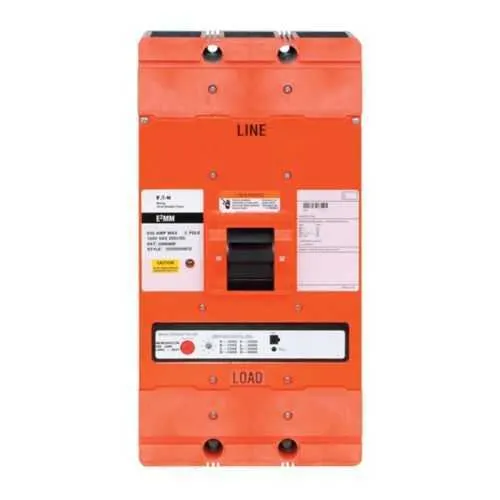

Eaton E2MM3800W Mining MCCB - 1000Y/577 Vac
Part Number: E2MM3800W
Quick Summary
The Eaton E2MM3800W is a mining complete molded case circuit breaker designed to protect high‑output mining electrical systems. In demanding mining environments, downtime and protection miscoordination can drive costly outages and slow production. Compliances and certifications are provided by the manufacturer, and may include SIL/CE/IP ratings—verify with Eaton for the latest details. Beyond protection, it supports rapid fault isolation with an interchangeable thermal-magnetic trip and compatibility with mining-system protection schemes. This combination delivers safer downtime, reduced maintenance costs, and scalable protection for evolving mining operations. The product's 800 A rating with 1000Y/577 Vac and 250 Vdc support heavy loads while maintaining safe, predictable tripping. Three-pole configuration, complete M-frame construction, and the 'without terminals' option give installers flexibility to match existing panels and bus layouts.
Product Information
Extended Description
E2MM3800W Eaton: Eaton E2 mining complete molded case circuit breaker, M-frame, E2MM, Complete breaker, Interchangeable thermal-magnetic trip, 2000-4000A trip rating, Three-pole, 800A, 1000Y/577 Vac, 250 Vdc, Without terminals, Mining
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2MM3800W
UPC
786685242798
Product Length/Depth
4.06 in
Product Height
16 in
Product Width
8.25 in
Product Weight
29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
800 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T207
Circuit breaker type
E2MM
Circuit breaker frame type
Complete breaker
Magnetic trip range
2000-4000A
Terminals
Without terminals
Frame
M
Class
Mining
Interrupt rating
18 kAIC at 1000Y/577 22 kAIC at 250 Vdc 35 kAIC at 480 V 25 kAIC at 600 V
Number of poles
Three-pole
Mining molded-case circuit breakers with 310+ electronic trip unit product aid
Mining molded-case circuit breakers with 310+ electronic trip unit product aid
Mining molded-case circuit breakers with 310+ electronic trip unit product aid
Mining molded-case circuit breakers with 310+ electronic trip unit product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Digitrip 310+ vs. 310 electronic trip unit technical comparison
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: Interchangeable thermal-magnetic trip. Business Impact: Enables flexible protection for varying load profiles without replacing the breaker, reducing spare parts and service time. Application: Ideal for mining feeders and distributed power in underground installations where protection settings must adapt to changing ore processing demands. Feature: 800 A amperage rating with 1000Y/577 Vac and 250 Vdc capability. Business Impact: Supports heavy mining loads with dual-voltage operation, simplifying design and inventory management. Application: Powers high‑demand equipment while preserving system stability across AC and DC sections. Feature: Magnetic trip range 2000–4000 A. Business Impact: Fast fault clearance reduces arc exposure and equipment damage, improving safety and uptime. Application: Critical for short-circuit protection on high‑current mining feeders. Feature: Three‑pole, M‑frame, complete breaker design. Business Impact: Ensures robust mechanical integrity and straightforward mounting in standard mining panels. Application: Fits common mining MCCB footprints and supports quick replacement in service bays. Feature: Terminals supplied without terminals. Business Impact: Installers gain freedom to select compatible terminal hardware to meet enclosure constraints and wiring schemes. Application: Streamlines integration into customized panel designs and reduces waste. Feature: Rugged mining class and high interrupt ratings across multiple voltages. Business Impact: Delivers dependable protection in harsh underground environments with proven fault isolation. Application: Suitable for mining applications requiring reliable trench protection and scalable protection strategy. Feature: Comprehensive documentation and service support from Eaton. Business Impact: Shortens commissioning and enables faster ROI through access to product aids and technical data. Application: Engineering teams rely on manufacturer resources for design validation and field service alignment.
