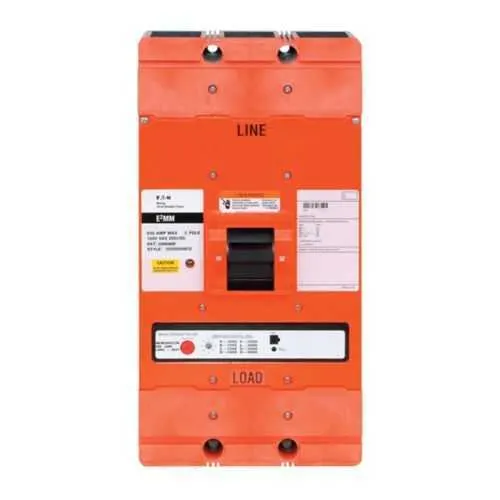

Eaton E2MM3800WA06H11 Mining MCCB - 25 kAIC/600V

Interchangeable thermal‑magnetic trip (T207) delivers precise protection coordination, shrinking nuisance trips and reducing unplanned outages. This aligns with mining feeder protection and motor control in demanding environments. The 800 A amperage rating paired with a 2000–4000 A magnetic trip range enables scalable protection for large mining feeders, resulting in faster fault clearing at high current levels and minimized arc exposure during fault events. Voltage accommodations cover 1000Y/577 Vac and 250 Vdc, enabling safe protection of mixed AC/DC mining loads and supporting retrofit projects or future expansions without swapping protection devices. Three‑pole M‑frame construction with a rear 2A‑2B auxiliary switch with right pigtail simplifies status signaling and remote coordination, while the terminals are designed without terminals to allow flexible connection options in space‑constrained panels. The interrupt ratings reach 25 kAIC at 600 V and scale to 22 kAIC at 250 Vdc, 35 kAIC at 480 V, and 18 kAIC at 1000Y/577, ensuring robust fault interruption across mining power systems. With dimensions of 4.06 in depth, 16 in height, 8.25 in width and a weight of 29 lb, it fits rugged installations while offering dependable protection and a clear maintenance path. A one‑year warranty (or 18 months from shipment) provides manufacturing defect coverage per Eaton policy.
