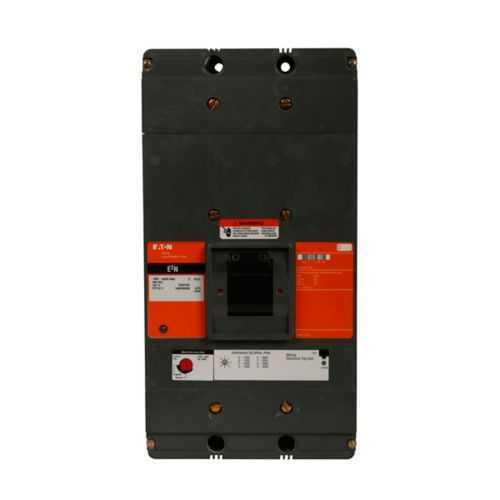

Eaton E2N310WA06U66 Mining MCCB - UL Listed

Part Number: E2N310WA06U66
E2N310WA06U66
Manufacturer
Eaton
Part number
E2N310WA06U66
Category

Quick Summary

The Eaton E2N310WA06U66 is a mining MCCB designed to protect large electrical systems in underground mining. Operators often face nuisance trips, limited diagnostics, and costly downtime when protection schemes drift out of coordination. UL Listed certification ensures safety compliance, while the N-frame mining design and robust interrupt ratings deliver rugged, field-proven performance; regional CE and IP considerations should be validated for your installation. This model combines an electronic LI trip with a rear 1A-1B auxiliary switch to support safer shutdowns and clearer fault signaling. With a compact 16.5 in length, 9 in width and height, and a 46 lb weight, it fits demanding mining panels and supports scalable protection for 600 Vac feeders.

Product Information

Extended Description

E2N310WA06U66 Eaton: Eaton E2 mining complete molded case circuit breaker, N-frame, E2N, Electronic LI trip, 1250-5000A, Three-pole, 1000A, 600 Vac, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, No term., 1A-1B rear w/right pigtail
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2N310WA06U66
UPC
786679191477
Product Length/Depth
16.5 in
Product Height
9 in
Product Width
9 in
Product Weight
46 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Amperage Rating
1000 A
Voltage rating
600 Vac
Trip Type
T165
Circuit breaker type
E2N
Auxiliary switch
1A-1B rear with right pigtail
Magnetic trip range
1250-5000A
Terminals
Without terminals
Undervoltage release
120 Vac mining rear with left pigtail
Frame
N
Class
Mining
Interrupt rating
50 kAIC at 480 Vac 65 kAIC at 240 Vac 25 kAIC at 600 Vac
Number of poles
Three-pole
Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MSHA policy letter for suitability, safety and performance of circuit breakers Robinson Mine Case Study: Solutions for the mining industry Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Understanding circuit breaker design and operation to improve safety and reliability in underground mining
High current rating and magnetic trip range enable precise protection for large mining feeders. The device specifies 1000 A continuous amperage and a magnetic trip range of 1250–5000 A, with up to 65 kAIC at 240 V, 50 kAIC at 480 V, and 25 kAIC at 600 V. This combination supports selective coordination in high-power underground installations and reduces the risk of nuisance trips during startup. Electronic LI trip provides accurate coordination and faster fault clearance, improving system reliability and maintenance planning. In mining environments, this translates to shorter downtime during faults and improved protection of pumps, conveyors, and fans. Rear-mounted 1A-1B auxiliary switch with right pigtail enables remote signaling and control integration with MCC panels and SCADA, reducing wiring complexity and supporting easier fault tracing. Undervoltage release 120 Vac rear with left pigtail adds a safety layer for automatic tripping during undervoltage conditions, enhancing safety in remote operations and lockout/tagout procedures. The rugged N-frame mining design, UL Listed, and a compact footprint offer installation flexibility in constrained spaces while ensuring safety compliance. Terminals are not included; field-installed lugs or bus options give you flexibility to match existing MCCB buswork and facilitate quick replacements, improving deployment timelines and total cost of ownership.
