Eaton E2N3600WA06U18 Mining MCCB - UL Listed

Part Number: E2N3600WA06U18
E2N3600WA06U18
Manufacturer
Eaton
Part number
E2N3600WA06U18
Category

Quick Summary

Eaton E2N3600WA06U18 is a mining complete molded case circuit breaker designed to protect high-current mining equipment. Engineers and maintenance teams often battle nuisance trips, slow fault isolation, and costly downtime in harsh underground environments. This device delivers reliable electronic LSI protection, robust N-frame construction, and a 600A, 600Vac rating to support large motor loads and feeders. It carries UL Listed and CSA Certified marks, signaling compliance with critical mining and electrical safety standards. By combining accessible rear-pigtail accessories, versatile undervoltage release options, and a compact 8.25 inch footprint, it enables easier panel integration, safer operation, and reduced total cost of ownership for mining controls.

Product Information

Extended Description

E2N3600WA06U18 Eaton: Eaton E2 mining complete molded case circuit breaker, N-frame, E2N, Electronic LSI trip, 500-2500A, Three-pole, 600A, 600 Vac, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, No term., 1A-1B rear w/right pigtail
Product Name

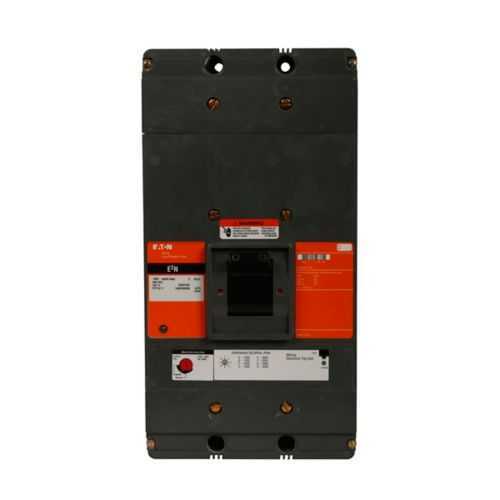

Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2N3600WA06U18
UPC
782114556924
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Type
Specialty complete
Amperage Rating
600 A
Voltage rating
600 Vac
Trip Type
Electronic LSI
Circuit breaker type
E2N
Circuit breaker frame type
Frame only
Auxiliary switch
1A-1B rear with right pigtail
Magnetic trip range
500-2500A
Terminals
Without terminals
Undervoltage release
110-127 Vac rear with left pigtail
Frame
N
Class
Mining
Interrupt rating
25 kAIC at 600 Vac 65 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Three-pole
Trip rating
500-2500 A
