Eaton E2N3800WS10 Mining MCCB - UL Listed CSA Certified

Part Number: E2N3800WS10
E2N3800WS10
Manufacturer
Eaton
Part number
E2N3800WS10
Category

Quick Summary

Eaton E2N3800WS10 mining complete molded case circuit breaker protects large motor and feeder circuits in mining operations. Operators face nuisance trips and costly downtime in demanding underground environments, and this device reduces that risk with an electronic LI trip. Certified CSA Listed and UL Listed ensure regulatory compliance for mining equipment, while rugged N-frame design supports reliable operation in harsh conditions. With compatibility for rear shunt options and flexible installation, it delivers safety, reliability, and cost efficiency across your mining power system. That translates to faster maintenance, easier spares planning, and better protection coordination with upstream devices.

Product Information

Extended Description

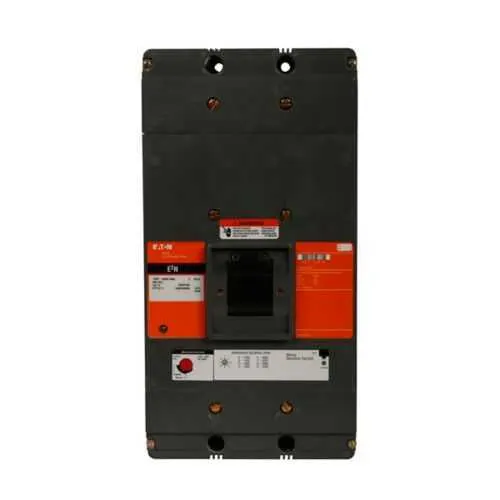

E2N3800WS10 Eaton: Eaton E2 mining complete molded case circuit breaker, N-frame, E2N, Electronic LI trip, 500-2500A, Three-pole, 800A, 600 Vac, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 25 kAIC at 600 Vac, 110-127 Vac GF or 208-240 Vac rear w/ left pigtail
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2N3800WS10
UPC
782116071388
Product Length/Depth
5.5 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Type
Specialty complete
Amperage Rating
800 A
Voltage rating
600 Vac
Trip Type
T165
Circuit breaker type
E2N
Circuit breaker frame type
Complete breaker
Magnetic trip range
500-2500A
Shunt trip
110-127 Vac GF or 208-240 Vac rear with left pigtail shunt
Terminals
Without terminals
Frame
N
Class
Mining
Interrupt rating
25 kAIC at 600 Vac 65 kAIC at 240 Vac 50 kAIC at 480 Vac
Number of poles
Three-pole
Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Eaton E2 Series mining service circuit breakers Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2 MSHA policy letter for suitability, safety and performance of circuit breakers Robinson Mine Case Study: Solutions for the mining industry Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Benchmark tests of factory production vs. third-party reconditioned mining molded case circuit breakers Selling Policy 25-000 - Distribution and Control Products and Services Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Electronic LI trip provides fast, reliable overcurrent protection with a broad magnetic trip range of 500-2500 A, reducing nuisance trips and improving system selectivity for mining feeders. Business impact: minimized unplanned downtime and improved fault isolation, enabling safer, more productive ore processing and materials handling at scale. Application: underground and surface mining electrical networks requiring precise protection with quick fault clearance. The N-frame three-pole complete breaker design of the E2N3800WS10 delivers rugged durability and straightforward retrofit into existing mining switchgear, supporting 800 A at 600 Vac and compatibility with common Eaton accessories. Business impact: easier installation, reduced spare part complexity, and better lifecycle cost management. Application: high-current mining installations where space is constrained and reliability is critical. Interrupt ratings of 25 kAIC at 600 Vac, 65 kAIC at 240 Vac, and 50 kAIC at 480 Vac provide robust fault withstand across diverse feeder configurations, improving safety margins and protection coordination. Application: mixed-voltage mining plants that transition between 240, 480, and 600 Vac systems. Shunt trip options (110-127 Vac GF or 208-240 Vac rear with left pigtail) enable remote actuation and fast isolation during maintenance or emergency events, supporting safer plant-wide depressurization or isolation sequences. Business impact: enhanced operational resilience and compliance with lockout/tagout procedures. Terminals are shipped without terminals, offering installation flexibility to match customer lug kits or field termination practices; compatibility with rear or front termination options simplifies integration with existing bus systems. Application: retrofit projects and new builds where terminations must align with plant-specific wiring practices. Warranty and service support follow Eaton’s policy, improving total cost of ownership through predictable post-sale assistance. Business impact: reduced risk of unexpected service costs and improved uptime for mining operations.
