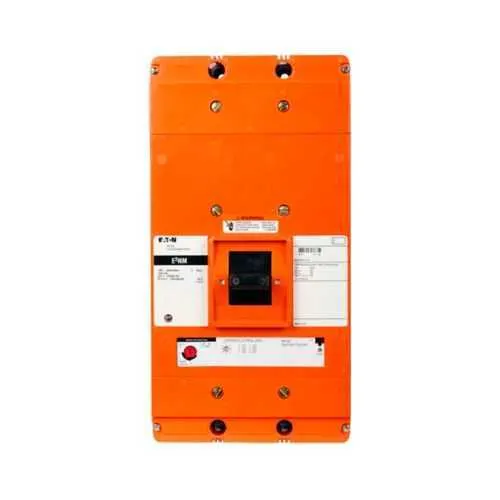

Eaton E2NM310WU66 Mining MCCB - 25 kAIC
Part Number: E2NM310WU66
Quick Summary
The Eaton E2NM310WU66 mining MCCB provides protective tripping for mining electrical feeders with precise electronic LI trip. In harsh mining environments, unreliable protection and nuisance trips can drive costly downtime. This device aligns with key mining safety standards and Eaton's certification documentation, including MSHA guidance; verify the latest datasheet for listings. Designed for industrial circuit protection, it supports robust uptime and safer, compliant power distribution in mining operations.
Product Information
Extended Description
E2NM310WU66 Eaton: Eaton E2 mining complete molded case circuit breaker, N-frame, E2NM, Electronic LI trip, 1250-5000A trip rating, Three-pole, 1000A, 1000Y/577 Vac, 250 Vdc, 25 kAIC at 1000 Vac, No terminals, Mining, 120 Vac mining rear with left pigtail
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2NM310WU66
UPC
786679059807
Product Length/Depth
5.5 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
1000 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2NM
Magnetic trip range
1250-5000A
Terminals
Without terminals
Undervoltage release
120 Vac mining rear with left pigtail
Frame
N
Class
Mining
Interrupt rating
25 kAIC at 1000 Vac
Number of poles
Three-pole
1200V K, L, M-Frame E2 mining molded case circuit breakers product aid
1200V K, L, M-Frame E2 mining molded case circuit breakers product aid
1200V K, L, M-Frame E2 mining molded case circuit breakers product aid
1200V K, L, M-Frame E2 mining molded case circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
Eaton Specification Sheet - E2NM310WU66
Eaton Specification Sheet - E2NM310WU66
Eaton Specification Sheet - E2NM310WU66
Eaton Specification Sheet - E2NM310WU66
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
