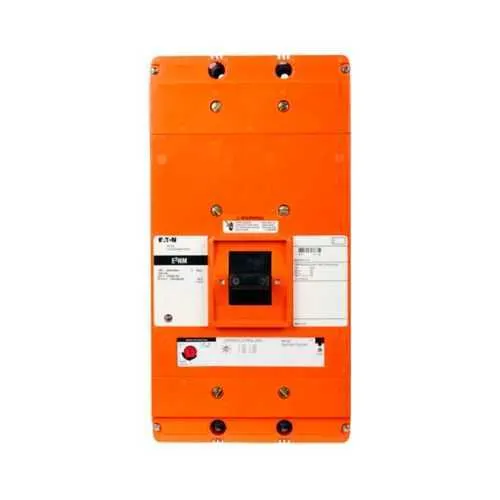

Eaton E2NM312WU66 Mining MCCB - 25 kAIC at 1000 Vac

Feature → Business Impact → Application: The E2NM312WU66 uses an N-frame, three-pole construction with an electronic LI trip, delivering precise overcurrent protection for complex mine feeder circuits. This translates to improved selectivity, reduced nuisance trips, and safer shutdown sequences during fault events, which minimizes unplanned downtime on critical mining equipment. In practice, it supports reliable control of underground ventilation and ore handling systems, while reducing maintenance interventions and boosting overall equipment availability. Feature → Business Impact → Application: A 1200 A amperage rating paired with a 1000Y/577 Vac and 250 Vdc voltage capability ensures compatibility with high-energy mining power networks and DC links used in hoisting or conveyor drives, enabling seamless integration with existing switchgear and motor controls. This enables faster, safer commissioning and streamlined changeouts in new or retrofit mining installations. Feature → Business Impact → Application: The 25 kAIC interrupt rating at 1000 Vac provides robust fault-current handling for high-energy mine electrical rooms, delivering dependable short-circuit protection even in high fault scenarios. This reduces arc-flash risk and supports compliance with rigorous safety standards in underground environments. Feature → Business Impact → Application: The unit’s “Undervoltage release” option (120 Vac mining rear with left pigtail) supports remote signaling and coordinated tripping, improving system reliability for remote restart sequences and safe isolation during maintenance or emergencies. This is particularly valuable in multi-panel mining setups where remote control and clear fault indication shorten mean-time-to-repair. Feature → Business Impact → Application: With a three-pole, mining-class frame (N-frame) and a compact 5.5 in depth by 8.25 in height and width footprint, this MCCB fits standard mining MCCB enclosures while simplifying field wiring and panel layout. The absence of terminals on the device itself reduces shipping damage and simplifies handling in tight mine spaces, while compatible accessories and documented data sheets support quick, error-free installation. Feature → Business Impact → Application: The warranty and documented feeder-grade performance (Eaton Selling Policy 25-000) provide a predictable maintenance window and long-term total cost of ownership benefits, helping maintenance teams plan replacements and refurbishments without surprise overhead. This is especially important for underground mine operations where downtime carries a premium. Feature → Business Impact → Application: Access to Eaton’s mining-focused datasheets, service bulletins, and case studies (including MSHA-compliant materials) supports informed decision-making and faster validation during procurement, installation, and commissioning in mining projects. These resources help engineers justify the purchase with tangible ROI in reliability, uptime, and safety.
