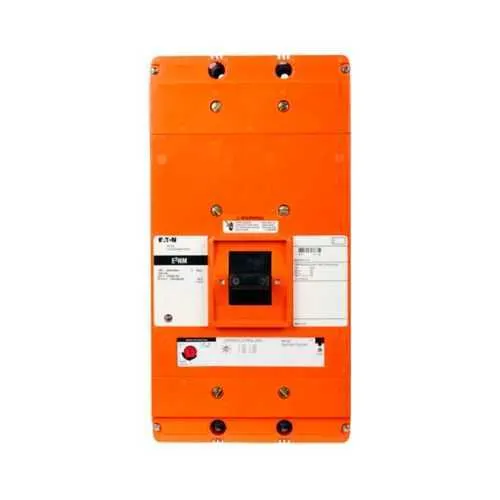

Eaton E2NM3600WA06U66 Mining MCCB - 25 kAIC, 1000 Vac
Part Number: E2NM3600WA06U66
Quick Summary
E2NM3600WA06U66 mining complete molded case circuit breaker protects critical underground mining electrical systems. In harsh mining environments, outages and nuisance trips can halt production and damage equipment; this MCCB offers reliable protection with a precise electronic LI trip and clear trip characteristics. Compliance and certifications vary by region, so refer to manufacturer documentation for SIL, CE, and IP ratings applicable to your site. Its compact 8.25 in footprint supports simpler panel layouts, while integrated accessories streamline installation and maintenance. Built to align with Eaton’s E2 mining portfolio, it delivers predictable protection, reduced downtime, and easier spare-part planning for underground operations.
Product Information
Extended Description
E2NM3600WA06U66 Eaton: Eaton E2 mining complete molded case circuit breaker, N-frame, E2NM, Electronic LI trip, 500-2500A, Three-pole, 600A, 1000Y/577 Vac, 250 Vdc, 25 kAIC at 1000 Vac, No term., 1A-1B rear w/right pigtail, 120 Vac mining rear w/ left pigtail
Product Name
Eaton E2 mining complete molded case circuit breaker
Catalog Number
E2NM3600WA06U66
UPC
782114812112
Product Length/Depth
8.25 in
Product Height
8.25 in
Product Width
8.25 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Certifications
Contact Manufacturer
Type
Specialty complete
Amperage Rating
600 A
Voltage rating
1000Y/577 Vac, 250 Vdc
Trip Type
T165
Circuit breaker type
E2NM
Circuit breaker frame type
Complete breaker
Auxiliary switch
1A-1B rear with right pigtail
Magnetic trip range
500-2500A
Terminals
Without terminals
Undervoltage release
120 Vac mining rear with left pigtail
Frame
N
Class
Mining
Interrupt rating
25 kAIC at 1000 Vac
Number of poles
Three-pole
Trip rating
500-2500 A
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Eaton E2 Series mining service circuit breakers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MSHA policy letter for suitability, safety and performance of circuit breakers
Robinson Mine Case Study: Solutions for the mining industry
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
E2 1200 Vac - K, L, and M-Frame mining service breakers and accessories
Selling Policy 25-000 - Distribution and Control Products and Services
Understanding circuit breaker design and operation to improve safety and reliability in underground mining
Feature: Electronic LI trip provides accurate fault sensing and a controlled shutdown. Business Impact: Minimizes unplanned outages and protects costly mining equipment, conveyors, and feeders. Application: Ideal for underground mining panels where precise coordination with feeders is essential. Feature: 25 kAIC interrupt rating at 1000 Vac ensures high fault current capability. Business Impact: Improves asset protection during short-circuit events and reduces arc-flash risk for personnel. Application: Suitable for mine substations and high-energy distribution nodes. Feature: 600 A amperage rating with 3-pole configuration (N-frame, mining class) offers robust three-phase protection. Business Impact: Supports safe start-up and reliable distribution to heavy mining loads, lowering maintenance costs. Application: Used in main distribution panels serving mining equipment clusters. Feature: Voltage rating of 1000Y/577 Vac and 250 Vdc enables AC and DC circuit protection in mixed mining environments. Business Impact: Eliminates need for multiple devices and simplifies control architecture. Application: Protects motors and DC systems in ore transport and processing. Feature: Undervoltage release at 120 Vac mining rear with left pigtail plus rear-mounted auxiliary (1A-1B with right pigtail). Business Impact: Enables remote trip signaling and control integration for automated safety interlocks. Application: Enhances panel-tested sequencing and fault isolation. Feature: Frame N, three-pole, mining class with without terminals design for flexible installation. Business Impact: Reduces terminal clutter and accommodates customer-prepared terminations, improving wiring density. Application: Fits compact mining switchgear and control enclosures. Feature: 8.25 in depth/height/width and 45 lb weight offer a balanced footprint for retrofit or new builds. Business Impact: Streamlined installation, lower material handling, and easier service access. Application: Suitable for compact mining switchgear enclosures and control rooms. Feature: Warranty aligned with Eaton policy and MSHA-friendly documentation in downloads. Business Impact: Clear support expectations and streamlined procurement, reducing total cost of ownership. Application: Useful for project budgeting and long-term service planning.
Get a Quick Quote for a Eaton E2NM3600WA06U66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton E2NM3600WA06U66?
Enquire Now
FAQs
This 3-pole, N-frame mining MCCB is designed for underground mining electrical systems, including distribution panels and feeder circuits. With a 600 A rating and 25 kAIC interrupt capability at 1000 Vac, it handles high short-circuit currents while preserving equipment. The 1000Y/577 Vac and 250 Vdc ratings support mixed AC and DC applications common in mining equipment suites.
Key specs include a 600 A amperage rating, 25 kAIC interrupt rating at 1000 Vac, voltage ratings of 1000Y/577 Vac and 250 Vdc, a three-pole configuration, and the T165 trip type. It supports 120 Vac mining rear undervoltage release with left pigtail and a rear 1A-1B auxiliary with right pigtail for remote signaling.
The electronic LI trip provides fast, precise fault detection with predictable tripping curves, reducing nuisance trips and protecting motors, conveyors, and feeders. This improves safety by minimizing fault exposure and helps operators maintain production schedules by shortening downtime after faults. The feature is particularly valuable in harsh underground environments where reliable protection matters most.
The E2NM3600WA06U66 uses an N-frame, three-pole design with no terminals included, which allows customer-specified terminations. Its compact 8.25 in footprint and 45 lb weight help with panel density in tight mining switchgear. Rear-mounted accessories (1A-1B rear with right pigtail and undervoltage 120 Vac mining rear with left pigtail) support flexible wiring and remote control options.
Product documentation and mining-specific guidance are available through Eaton’s downloadable materials, including mining-focused brochures, MSHA policy letters, and E2 MCCB datasheets. Always verify region-specific certifications (SIL, CE, IP) from the manufacturer to ensure site compliance and to align with maintenance and replacement planning.
