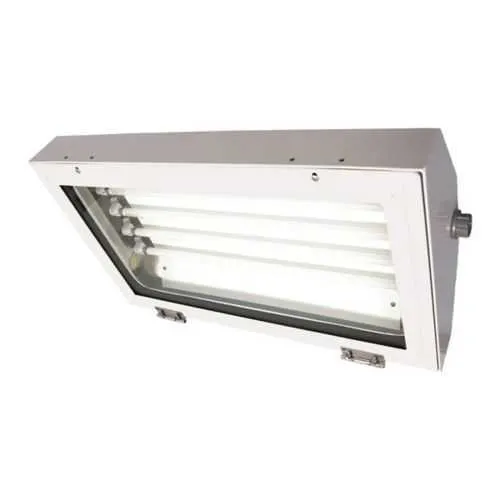

Eaton EAB44170HR Linear Fluorescent Light Fixture - IP66
Part Number: EAB44170HR
Quick Summary
Eaton EAB44170HR is a high-performance linear fluorescent light fixture designed for industrial environments requiring reliability and long service life. In demanding facilities, maintenance downtime and corrosion risk can erode productivity, so a rugged, serviceable luminaire is essential. This model carries IP66 ingress protection and a NEMA 4 enclosure, aligned with NEC/CEC standards to ensure code-compliant operation in ordinary/non-hazardous locations. With a wide voltage input of 120–277 Vac and 50/60 Hz compatibility, it reduces wiring complexity and parts diversity. The 4-lamp, 32W configuration provides ample illumination while supporting energy efficiency goals, and its Pauluhn Summit lineage reinforces consistency across a scalable industrial lighting approach for modern facilities.
Product Information
Extended Description
EAB44170HR Eaton: Eaton Crouse-Hinds series Pauluhn Summit EA linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,Aluminum,Pendant ,4-lamp,High reflectance reflector,Bolted door,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit EA linear fluorescent light fixture
Catalog Number
EAB44170HR
UPC
662276374492
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
4 ft
Number of lamps
4-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
32W
Lens material
Acrylic
Special features
High reflectance reflector
Crouse-Hinds series Pauluhn Summit Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Industrial Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - EAB44170HR
Feature: Four-lamp, 4 ft fixture delivers ample lighting coverage with a compact footprint. Business Impact: Reduces the number of fixtures needed and lowers installation time, enabling faster deployments in manufacturing lines and warehouses. Application: Ideal for large work areas and assembly zones where uniform brightness is critical. Feature: IP66 ingress protection and NEMA 4 enclosure. Business Impact: Improves reliability in dusty, wet, or wash-down environments, reducing maintenance calls and extending service intervals. Application: Suitable for process floors, mezzanines, and outdoor-adjacent spaces in non-hazardous locations. Feature: Wide voltage range 120–277 Vac and 50/60 Hz. Business Impact: Simplifies electrical design and stocking, enabling plug-and-play replacements across facilities with mixed supply. Application: Supports multi-site installations and retrofit projects. Feature: Aluminum housing with acrylic lens and high reflectance reflector. Business Impact: Enhances thermal performance and light output efficiency, lowering operating costs while preserving lumen maintenance. Application: Preferred for environments where corrosion resistance and easy cleaning are priorities. Feature: Pendant mounting, 1/2 inch entry and two NPT hubs. Business Impact: Offers flexible installation paths and conduit routing, reducing labor during installation and future reconfigurations. Application: Common in suspended ceiling or open-structure facilities. Feature: Bolted door design and 32W fluorescent lamps. Business Impact: Facilitates rapid maintenance and straightforward lamp replacement with minimal downtime. Application: Busy production lines and maintenance corridors benefit from fast-service access.
Get a Quick Quote for a Eaton EAB44170HR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EAB44170HR?
Enquire Now
FAQs
Yes. The EAB44170HR is rated for 120–277 Vac, 50/60 Hz, and supports pendant mounting. It also provides flexible installation through a 1/2 inch entry and two NPT hubs for conduit routing, making it suitable for suspended installations in industrial spaces.
The fixture uses four T8 fluorescent lamps, total wattage 32W, with a 4 ft lamp length. It features an aluminum housing, acrylic lens, and a high reflectance reflector to maximize light output. It operates at 50/60 Hz and is designed for IP66 protection and NEMA 4 enclosures for durability.
Yes. The EAB44170HR is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards and providing reliable performance in standard industrial environments without hazardous classifications.
The luminaire complies with NEC/CEC standards, carries a NEMA 4 enclosure rating, and IP66 ingress protection. These certifications support safe operation in non-hazardous industrial settings and ensure compliance with common electrical codes.
The bolted-door design enables rapid lamp access and servicing, reducing downtime. A high reflectance reflector and durable aluminum housing improve efficiency and longevity, contributing to lower maintenance costs and faster return on investment in busy production and logistics environments.
