Eaton EBMBA WT20EHD34 Three-Pole Circuit Breaker - 480 Vac
Part Number: EBMBA WT20EHD34
Quick Summary
The Eaton EBMBA WT20EHD34 is a three-pole circuit breaker engineered for hazardous and classified locations. It helps plants reduce arc-flash risk and simplify maintenance in demanding environments. Key certifications include NEC/CEC compliance and hazardous-location ratings for Class I, Division 1 and 2, plus Class II and III, with broad NEMA ratings 3, 3R, 4, 7, 9 and 12 that support diverse industrial uses. The 15–70 A range on a 100 A frame, with a copper-free aluminum enclosure, delivers reliable protection while keeping weight and footprint manageable. Bolted grounding, gasketed covers, and compatibility with Eaton’s EBMB line enable straightforward installation and lower lifecycle costs.
Product Information
Extended Description
EBMBA WT20EHD34 Eaton: Eaton Crouse-Hinds series EBMB circuit breaker, 15A through 70A, EHD frame type, Bolted/ground joint/gasketed cover construction, Copper-free aluminum, 100A frame size, Cutler-Hammer breaker, Three-pole, 20A trip, 480 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EBMB circuit breaker
Catalog Number

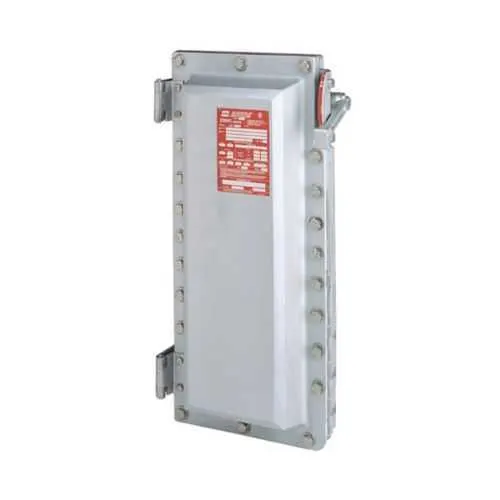

EBMBA WT20EHD34
UPC
782274911977
Product Length/Depth
14.78 in
Product Height
19.4 in
Product Width
10.25 in
Product Weight
102 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 3R 4 7 9 12
Enclosure
With circuit breaker
Number of poles
Three-pole
Voltage rating
480 Vac/250 Vdc
Frame size
100A
Amperage Rating
15 A through 70 A
Manufacturer
Cutler-Hammer
Circuit breaker frame type
EHD
Enclosure cover construction
Bolted/ground joint/gasketed
Enclosure material
Copper-free aluminum
SP3D Design Package - EBMB Explosionproof Circuit Breakers
EBMB Series Explosionproof Circuit Breakers catalog page
EBMB Explosionproof Circuit Breakers UL certification
EBMB Explosionproof Circuit Breakers UL certification
IF 1150 - EBM Motor Control Series Combination Line Starters, Motor Starters, Circuit Breakers
IF 1150 - EBM Motor Control Series Combination Line Starters, Motor Starters, Circuit Breakers
IF 1150 - EBM Motor Control Series Combination Line Starters, Motor Starters, Circuit Breakers
Eaton Specification Sheet - EBMBA WT20EHD34
Explosionproof design with the EHD frame provides safe, explosionproof circuit protection for hazardous locations. It helps reduce ignition risk and unplanned outages by maintaining enclosure integrity under demanding conditions. Application: Oil and gas, chemical processing, and mining environments where equipment must withstand explosive atmospheres. Wide amperage range from 15 to 70 A within a 100 A frame reduces spare-part inventory and simplifies protective device coordination across multiple panels. Application: Panel builders and MCCs needing configurable protection without adding part numbers. Copper-free aluminum enclosure with bolted/ground joint and gasketed cover offers a lightweight, durable, and sealed enclosure that improves serviceability and lifecycle costs. Application: Harsh environments where enclosure sealing is critical. The 480 Vac / 250 Vdc rating and three-pole configuration enable coverage for mixed power and DC control circuits, reducing wiring complexity and installation time. Application: Main feeders and motor circuits in hazardous locations. NEC/CEC compliance, hazardous-location area classifications, and broad NEMA ratings (3, 3R, 4, 7, 9, 12) support regulatory readiness, faster audits, and smoother approvals. Application: Industries with strict safety and regulatory requirements, including chemical plants, refineries, and mining sites.
